Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)

Plate Finish

Richmond Bronze

Insert Finish

Black

Description

Hartland CFX Richmond Bronze Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-031-014
Insert-Type

Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible)
Insert-Colour

Black
Uf-ItmLabelTechInsert

DTRID
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Richmond Bronze Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
PlateFinish

Hartland CFX Richmond Bronze
EAN13-Barcode

5017504014520
Dimensions(Nominal)

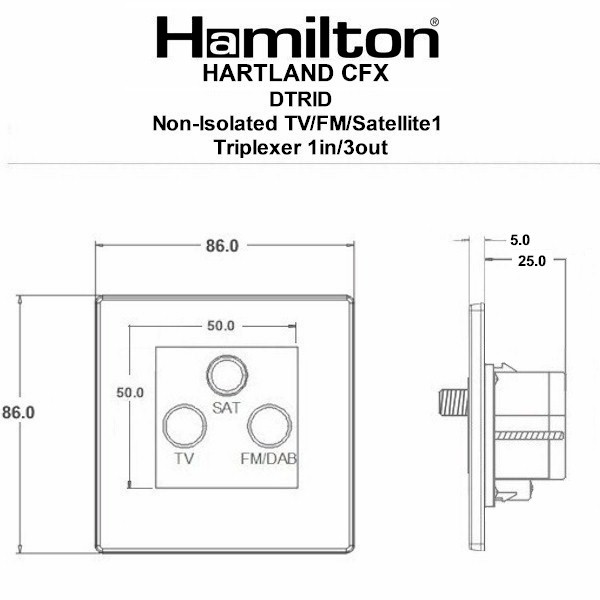

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 50083-2:2012/A1; 2015. BS EN 61169-2:2007. BS EN 61169-24:2009
EuroFix-Additional-Notes

Triplexer for use with combined TV FM and Satellite Signal (DAB compatible)
Frequencies-1

TV=5-68 MHz 125-860 MHz
Frequencies-2

FM=88-108 MHz
Frequencies-3

SAT DC=950-2200 MHz
Commodity-Code

85367000
Wiring-Image

Dimension-Image

Luckins-TSI

398319827
Tech-Sheet-Page-Footer

7RBCDTRIDB – Hartland CFX Richmond Bronze Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Black
product-code

S HT-C RB
family-code

S HART CFX
last-inv

06/08/2017
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533323988
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

31
InsertSortOrder

014
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV+FM+SAT
WEB-NumberofGangs

3
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
