Hart CFX RB 2g RJ45 CAT5E Unshielded BL

Hart CFX RB 2g RJ45 CAT5E Unshielded BL
Hart CFX RB 2g RJ45 CAT5E Unshielded BL - Image 2
Hart CFX RB 2g RJ45 CAT5E Unshielded BL - Image 3

Type

2 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Richmond Bronze

Insert Finish

Black

Description

Hartland CFX Richmond Bronze 2 gang RJ45 CAT 5E Outlet – Unshielded Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-033-002
Insert-Type

2 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

Black
Uf-ItmLabelTechInsert

2J45
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Richmond Bronze 2 gang RJ45 CAT 5E Outlet – Unshielded Black
PlateFinish

Hartland CFX Richmond Bronze
EAN13-Barcode

5017504014292
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

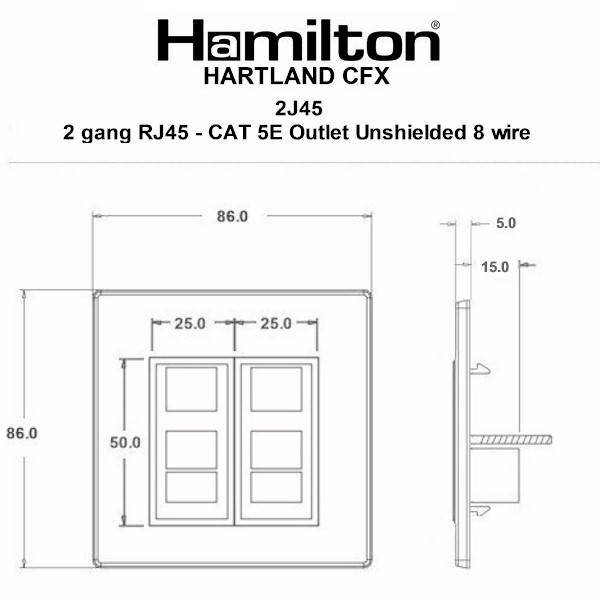

Dimension-Image

Luckins-TSI

398319458
Tech-Sheet-Page-Footer

7RBC2J45B – Hartland CFX Richmond Bronze 2 gang RJ45 CAT 5E Outlet – Unshielded Black
product-code

S HT-C RB
family-code

S HART CFX
last-inv

27/11/2025
unit-weight

110.00000
weight-units

GR
Uf-LuckinsEDP

4533323739
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

33
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

13/02/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Weight

110 GR
IP-Rating

IP2XD
description

Hart CFX RB 2g RJ45 CAT5E Unshielded BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Richmond Bronze
Subheader2

Hartland CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
