H-CFX BK 1g Non-Isolated TV 1in/1out BL

SKU: 78CTVB Category:

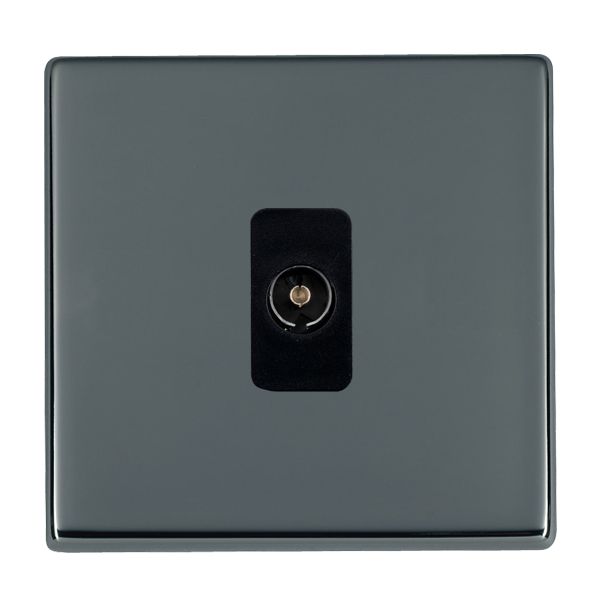

H-CFX BK 1g Non-Isolated TV 1in/1out BL
H-CFX BK 1g Non-Isolated TV 1in/1out BL - Image 2
H-CFX BK 1g Non-Isolated TV 1in/1out BL - Image 3
H-CFX BK 1g Non-Isolated TV 1in/1out BL - Image 4
SKU: 78CTVB Category:

Type

1 gang Non-Isolated TV 1in/1out

Plate Finish

Black Nickel

Insert Finish

Black

Description

Hartland CFX Black Nickel 1 gang Non-Isolated Television 1in/1out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-032-001
Insert-Type

1 gang Non-Isolated TV 1in/1out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TV
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Black Nickel 1 gang Non-Isolated Television 1in/1out Black
PlateFinish

Hartland CFX Black Nickel
EAN13-Barcode

5017504281601

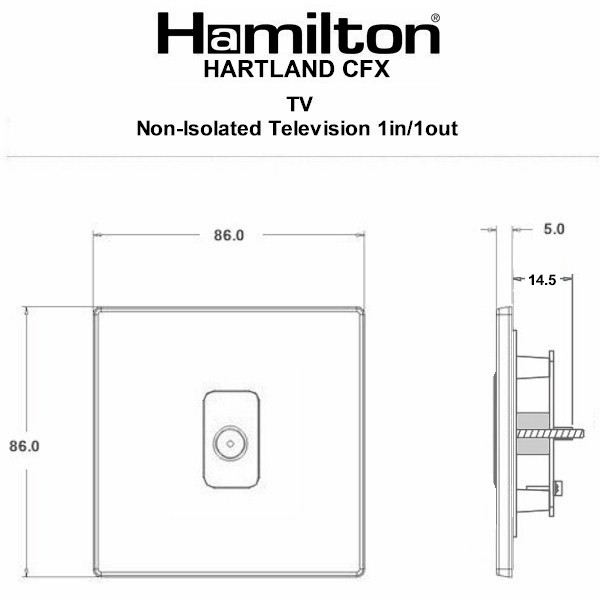

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

388241374
Tech-Sheet-Page-Footer

78CTVB – Hartland CFX Black Nickel 1 gang Non-Isolated Television 1in/1out Black
product-code

S HT-C BK
family-code

S HART CFX
last-inv

06/03/2025
unit-weight

156.00000
weight-units

GR
Uf-LuckinsEDP

4533164422
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

32
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Non-Isolated
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Weight

156 GR
IP-Rating

IP2XD
description

H-CFX BK 1g Non-Isolated TV 1in/1out BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Black Nickel
Subheader2

Hartland CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
