Hart CFX SS Wd Rk 1g 10AX PTM SS/WH

Hart CFX SS Wd Rk 1g 10AX PTM SS/WH
Hart CFX SS Wd Rk 1g 10AX PTM SS/WH - Image 2

Type

Wide Rocker - 1 gang 10AX Push To Make/Push to Break Retractive Rocker

Plate Finish

Satin Steel Effect

Insert Finish

Satin Steel/White

Description

Hartland CFX Satin Steel Effect Wide Rocker 1 gang 10AX Push To Make/Push to Break Retractive Satin Steel/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-001-041
Insert-Type

Wide Rocker – 1 gang 10AX Push To Make/Push to Break Retractive Rocker
Insert-Colour

Satin Steel/White
Uf-ItmLabelTechInsert

WRRT
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Satin Steel Effect Wide Rocker 1 gang 10AX Push To Make/Push to Break Retractive Satin Steel/White
PlateFinish

Hartland CFX Satin Steel Effect
EAN13-Barcode

5051164021382
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

1x4mm² Multi-strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

2×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Additional-Notes

CE Marked
Module-Size

Height = 67mm Width = 67mm Depth = 22mm
Commodity-Code

85365080
Wiring-Image

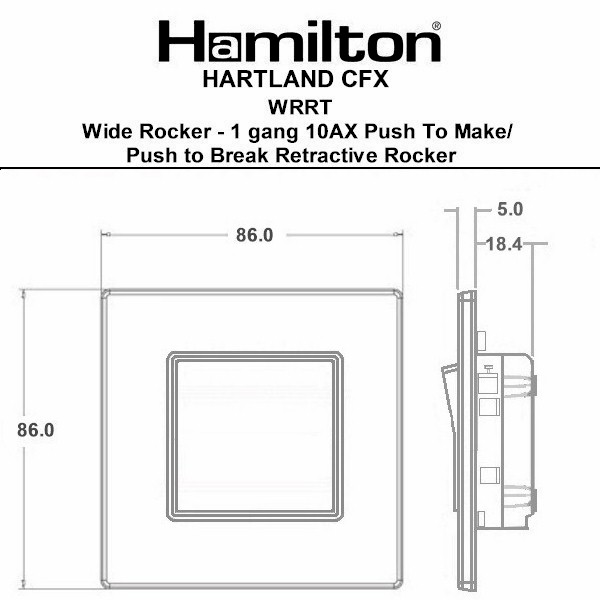

Dimension-Image

Luckins-TSI

408171269
Tech-Sheet-Page-Footer

74CWRRTSS-W – Hartland CFX Satin Steel Effect Wide Rocker 1 gang 10AX Push To Make/Push to Break Retractive Satin Steel/White
product-code

S HT-C SS
family-code

S HART CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533408861
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

001
InsertSortOrder

041
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

67mm
Module-Size-Width

67mm
Module-Size-Depth

22mm
Uf-HAMPlateFinish

Satin Steel Effect
Uf-HAMFrameFinish

n/a
WEB-InsertType

Push To Make Retractive Wide
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Steel Effect
Subheader2

Hartland CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart CFX SS Wd Rk 1g 10AX PTM SS/WH
Height

86.0mm
Width

86.0mm
Depth

5.0mm
