Description
Hartland CFX Satin Steel Effect Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
Hart CFX SS Shaver Dual Volt Socket BL
Type
Shaver Dual Voltage Unswitched Socket (Vertically Mounted)Plate Finish
Satin Steel EffectInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX |
| Page-Sort-Order | 012-021-011 |
| Insert-Type | Shaver Dual Voltage Unswitched Socket (Vertically Mounted) |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | SHS |
| Uf-HAM-Plate-Range | Hartland CFX Vertical |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland CFX |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445 |
| Item-Long-Description | Hartland CFX Satin Steel Effect Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black |
| PlateFinish | Hartland CFX Vertical Satin Steel Effect |
| EAN13-Barcode | 5017504261030 |

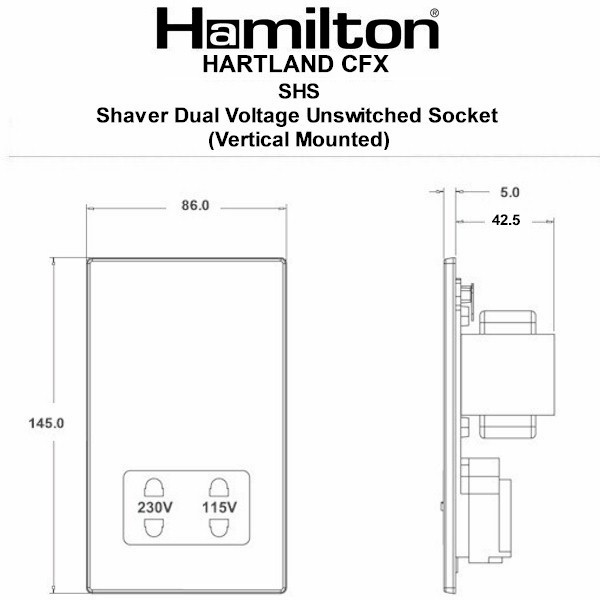

| Dimensions(Nominal) | Double: Height = 145.0mm Width = 86.0mm Depth = 5.0mm |
| Switched-Poles | None |
| Current-Rating | 20VA |
| Maximum-Load | 200/250V input; 115/230V 20VA output |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 9x1mm² |
| Earth-Terminal-Capacity-2 | 6×1.5mm² |
| Earth-Terminal-Capacity-3 | 4×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 61558-2-5 + BS 4573 |
| Additional-Notes | Must be mounted vertically. Shuttered :Yes. Box Depth 47mm |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSHS.jpg |
| Item-Image | 74CSHSB.jpg |
| Dimension-Image | TD-7CSHS.jpg |
| Luckins-TSI | 388238840 |
| Tech-Sheet-Page-Footer | 74CSHSB – Hartland CFX Satin Steel Effect Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black |
| product-code | S HT-C SS |
| family-code | S HART CFX |
| last-inv | 29/07/25 |
| unit-weight | 695.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533161904 |
| Uf-HAMInnerBoxQty | 2 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 012 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 011 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Satin Steel Effect |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Shaver Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 05/02/26 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 47mm |
| Plate-Finish | Satin Steel Effect |
| Subheader2 | Hartland CFX Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bzky/#p=1 |
| Weight | 695 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart CFX SS Shaver Dual Volt Socket BL |
| Height | 145.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
Download datasheet
