Hart CFX Pr/Wht 2g 13A DP Swt Skt BL/BL

Hart CFX Pr/Wht 2g 13A DP Swt Skt BL/BL
Hart CFX Pr/Wht 2g 13A DP Swt Skt BL/BL - Image 2
Hart CFX Pr/Wht 2g 13A DP Swt Skt BL/BL - Image 3

Type

2 gang 13A Double Pole Switched Socket

Plate Finish

Primed White

Insert Finish

Black/Black

Description

Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-021-002
Insert-Type

2 gang 13A Double Pole Switched Socket
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

SS2
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket Black/Black
PlateFinish

Hartland CFX Primed White
EAN13-Barcode

5017504015855

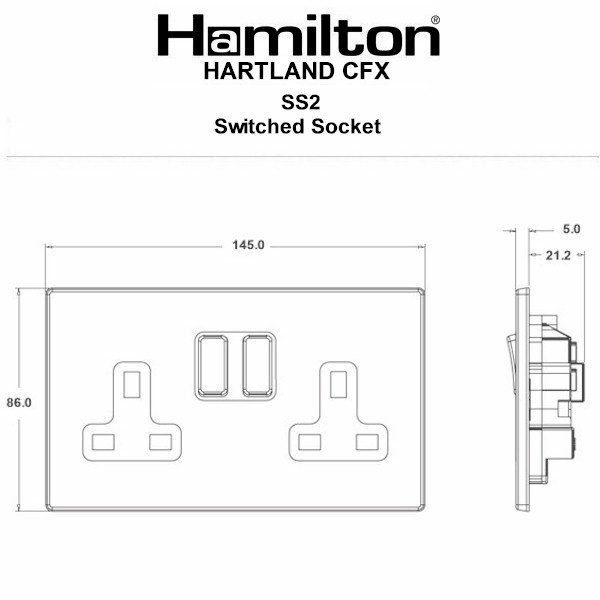

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Dual Earth: Yes
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

398335610
Tech-Sheet-Page-Footer

7WPCSS2BL-B – Hartland CFX Primed White 2 gang 13A Double Pole Switched Socket Black/Black
product-code

S HT-C PRW
family-code

S HART CFX
last-inv

26/02/26
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533326613
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

021
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Primed White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

26/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Primed White
Subheader2

Hartland CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart CFX Pr/Wht 2g 13A DP Swt Skt BL/BL
Height

86.0mm
Width

145.0mm
Depth

5.0mm
