Hart CFX Pr/Wht 1g 13A Unswt Skt BL

Hart CFX Pr/Wht 1g 13A Unswt Skt BL
Hart CFX Pr/Wht 1g 13A Unswt Skt BL - Image 2
Hart CFX Pr/Wht 1g 13A Unswt Skt BL - Image 3

Type

1 gang 13A Unswitched Socket

Plate Finish

Primed White

Insert Finish

Black

Description

Hartland CFX Primed White 1 gang 13A Unswitched Socket Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-021-007
Insert-Type

1 gang 13A Unswitched Socket
Insert-Colour

Black
Uf-ItmLabelTechInsert

US13
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Primed White 1 gang 13A Unswitched Socket Black
PlateFinish

Hartland CFX Primed White
EAN13-Barcode

5017504016012

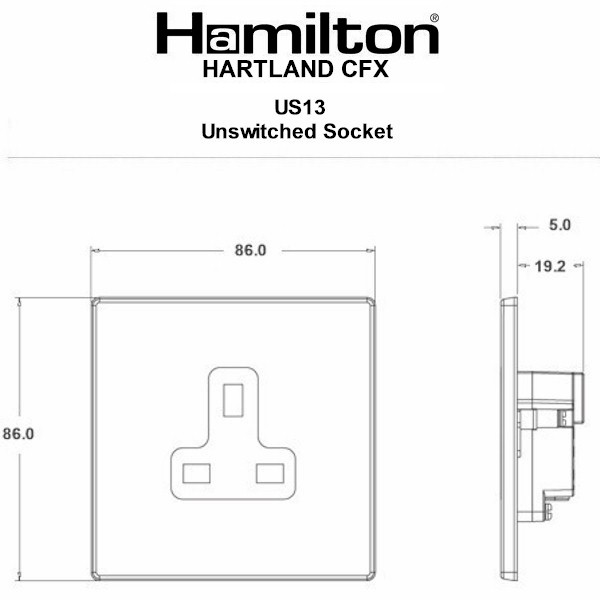

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3 x 4mm2
Earth-Terminal-Capacity-3

2 x 6mm2 Multi-strand
Earth-Terminal-Capacity-4

1 x 10mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

398346418
Tech-Sheet-Page-Footer

7WPCUS13B – Hartland CFX Primed White 1 gang 13A Unswitched Socket Black
product-code

S HT-C PRW
family-code

S HART CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533326778
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

21
InsertSortOrder

007
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Primed White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

12/05/2025
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Primed White
Subheader2

Hartland CFX Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart CFX Pr/Wht 1g 13A Unswt Skt BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
