Hart CFX BG 1 Euro Apert 25×50+Grid

SKU: 7BGCEURO1 Category:
Hart CFX BG 1 Euro Apert 25x50+Grid
Hart CFX BG 1 Euro Apert 25x50+Grid - Image 2
SKU: 7BGCEURO1 Category:

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Basalt Gray

Insert Finish

N/A

Description

Hartland CFX EuroFix Basalt Gray Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-046-001
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Hartland CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX EuroFix Basalt Gray Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
PlateFinish

Hartland CFX EuroFix Basalt Gray
EAN13-Barcode

5017504093303
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Wiring-Image

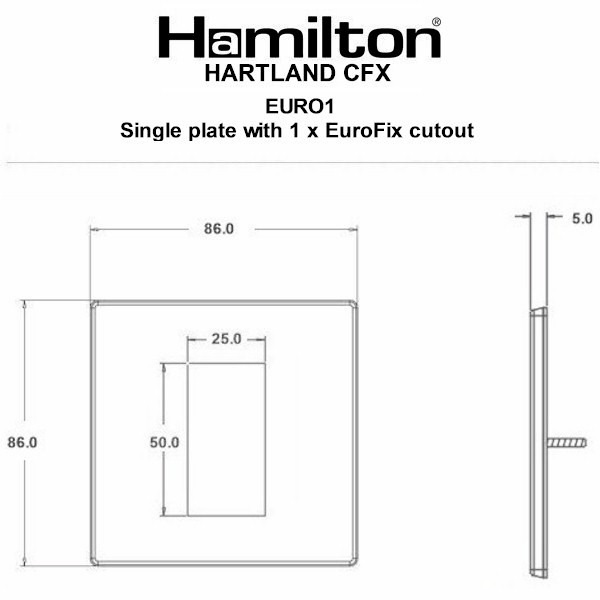

Dimension-Image

Luckins-TSI

436622586
Tech-Sheet-Page-Footer

7BGCEURO1 – Hartland CFX EuroFix Basalt Gray Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
product-code

S EFx 7BGC
family-code

S HART CFX
last-inv

16/09/2024
unit-weight

91.80000
weight-units

GR
Uf-LuckinsEDP

4533448795
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

46
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Basalt Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

13/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Insert
Weight

92 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

Hart CFX BG 1 Euro Apert 25×50+Grid
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Basalt Gray
Subheader2

Hartland CFX Eurofix
