Hart CFX AB 2 Euro Apert 50X50+Grid

SKU: 79CEURO2 Category:

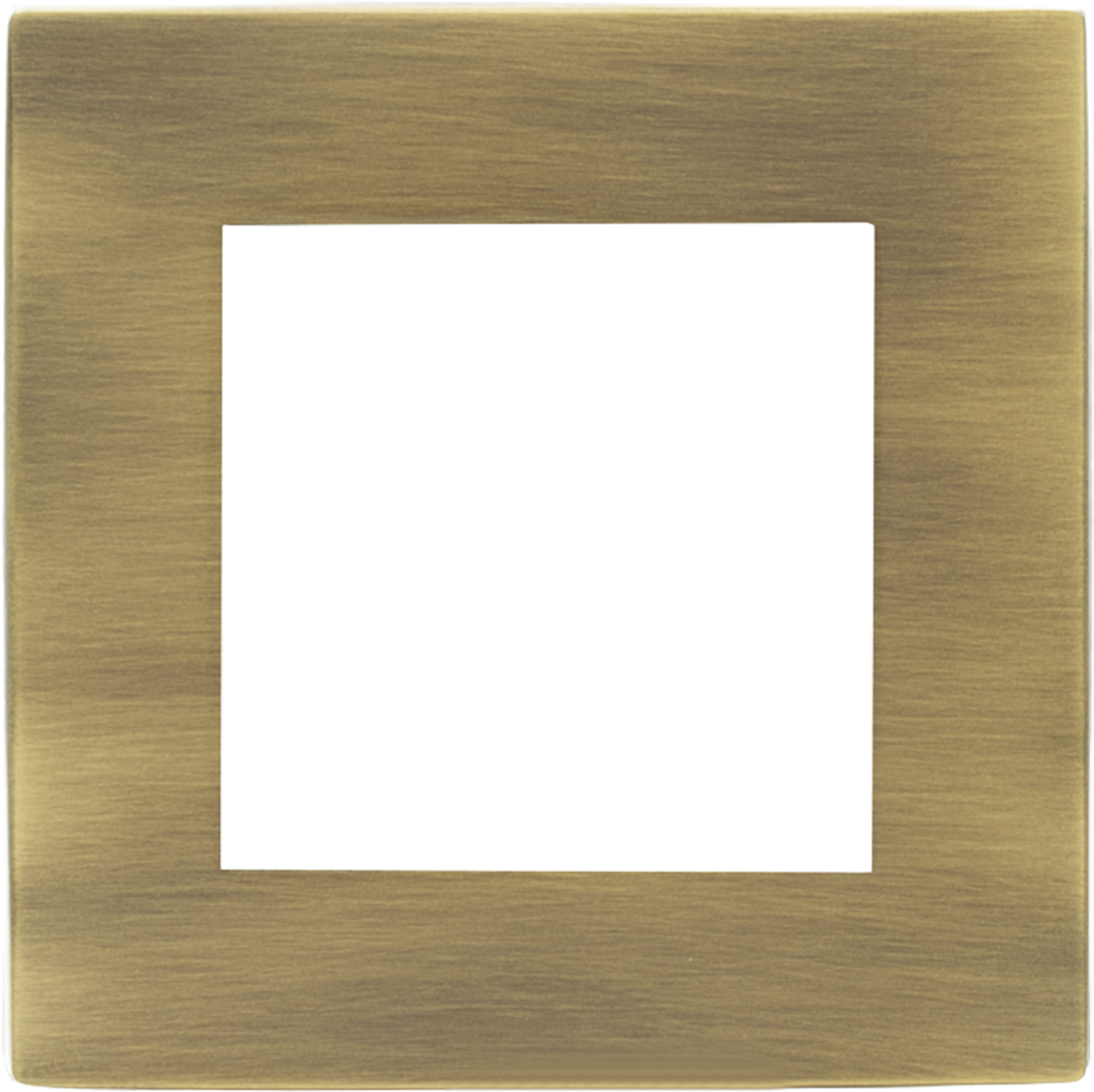

Hart CFX AB 2 Euro Apert 50X50+Grid
Hart CFX AB 2 Euro Apert 50X50+Grid - Image 2
Hart CFX AB 2 Euro Apert 50X50+Grid - Image 3
SKU: 79CEURO2 Category:

Type

2 gang EuroFix 50x50mm Apertured Plate with Grid

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Hartland CFX EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-046-002
Insert-Type

2 gang EuroFix 50x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO2
Uf-HAM-Plate-Range

Hartland CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
PlateFinish

Hartland CFX EuroFix Antique Brass
EAN13-Barcode

5017504299170

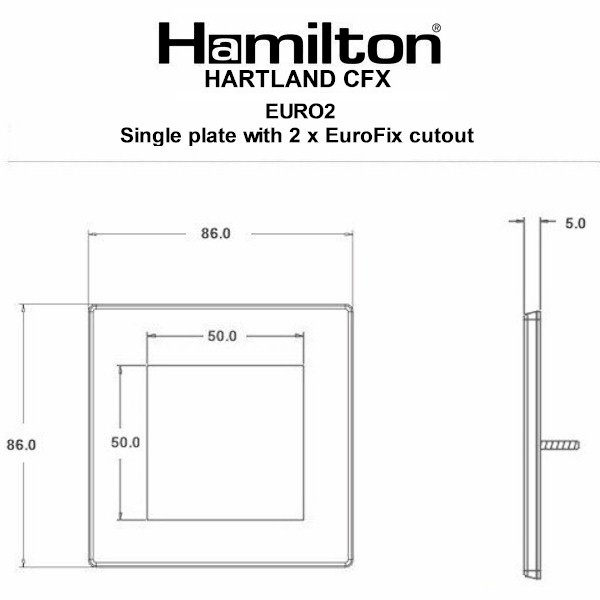

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74198090
Item-Image

Dimension-Image

Luckins-TSI

391561025
Tech-Sheet-Page-Footer

79CEURO2 – Hartland CFX EuroFix Antique Brass Single Plate complete with 2 EuroFix Apertures 50x50mm and Grid
product-code

S EFix 79C
family-code

S HART CFX
last-inv

27/02/26
unit-weight

73.00000
weight-units

GR
Uf-LuckinsEDP

4533191738
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

046
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

2
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

27/02/26
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Inserts
Weight

73 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

Hart CFX AB 2 Euro Apert 50X50+Grid
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Antique Brass
Subheader2

Hartland CFX Range
