Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL

Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL
Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL - Image 2
Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL - Image 3
Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL - Image 4

Type

1 gang 20AX FL Double Pole Rocker + Neon

Plate Finish

Satin Steel Effect

Insert Finish

Satin Steel/Black

Description

Hartland CFX Satin Steel Effect 1 gang 20AX Double Pole Rocker and Neon Satin Steel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-027-002
Insert-Type

1 gang 20AX FL Double Pole Rocker + Neon
Insert-Colour

Satin Steel/Black
Uf-ItmLabelTechInsert

DPN-FL
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Satin Steel Effect 1 gang 20AX Double Pole Rocker and Neon Satin Steel/Black
PlateFinish

Hartland CFX Satin Steel Effect
EAN13-Barcode

5017504266943
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Current-Rating

20AX
Commodity-Code

85365080

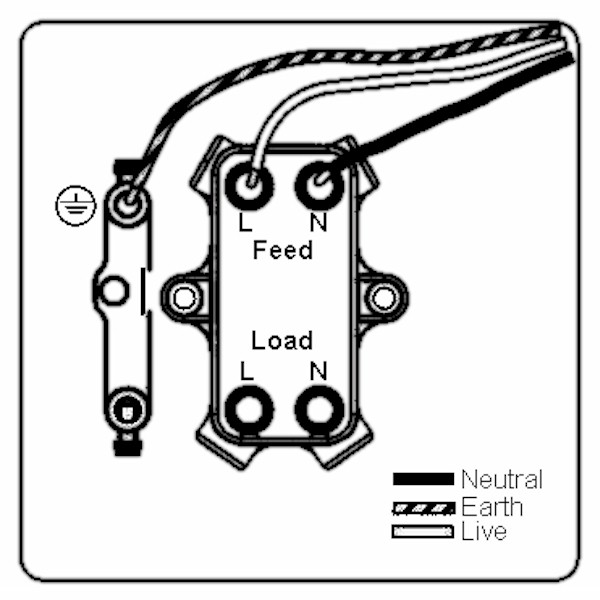

Wiring-Image

Item-Image

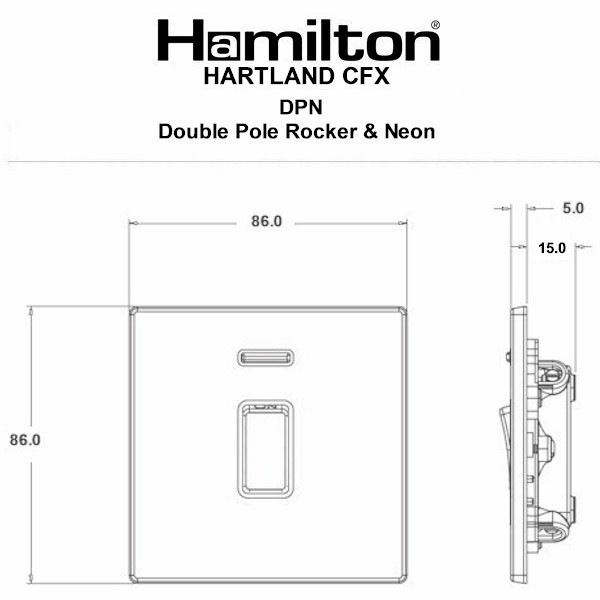

Dimension-Image

Luckins-TSI

388237964
Tech-Sheet-Page-Footer

74CDPNSS-B – Hartland CFX Satin Steel Effect 1 gang 20AX Double Pole Rocker and Neon Satin Steel/Black
product-code

S HT-C SS
family-code

S HART CFX
last-inv

16/01/2026
unit-weight

176.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533161027
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

27
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel Effect
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

Black
Last-Updated-At-Hamilton

02/12/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Steel Effect
Subheader2

Hartland CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

176 GR
description

Hart CFX SS 1g 20AX DP Rkr + Neon SS/BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
