H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH

H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH
H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH - Image 2
H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH - Image 3
H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH - Image 4

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Primed White

Insert Finish

Red/White

Description

Hartland CFX Primed White 1 gang 45A Double Pole Rocker and Neon Red/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/White
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Primed White 1 gang 45A Double Pole Rocker and Neon Red/White
PlateFinish

Hartland CFX Primed White
EAN13-Barcode

5017504015114

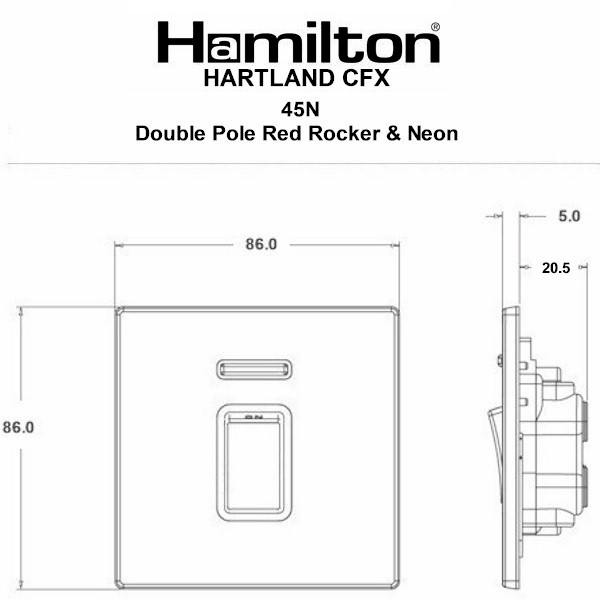

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

398331782
Tech-Sheet-Page-Footer

7WPC45NW – Hartland CFX Primed White 1 gang 45A Double Pole Rocker and Neon Red/White
product-code

S HT-C PRW
family-code

S HART CFX
last-inv

18/12/2025
unit-weight

165.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533325821
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Primed White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

White
Last-Updated-At-Hamilton

31/12/2025
Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Primed White
Subheader2

Hartland CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

165 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

H-CFX Pr/Wht 1g 45A DP+N Red Rkr/WH
Height

86.0mm
Width

86.0mm
Depth

5.0mm
