Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH

Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH
Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH - Image 2
Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH - Image 3
Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH - Image 4

Type

1 gang 20AX FL Double Pole Rocker + Neon

Plate Finish

Polished Brass

Insert Finish

Polished Brass/White

Description

Hartland CFX Polished Brass 1 gang 20AX Double Pole Rocker and Neon Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-027-002
Insert-Type

1 gang 20AX FL Double Pole Rocker + Neon
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

DPN-FL
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Polished Brass 1 gang 20AX Double Pole Rocker and Neon Polished Brass/White
PlateFinish

Hartland CFX Polished Brass
EAN13-Barcode

5017504243944
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Current-Rating

20AX
Commodity-Code

85365080

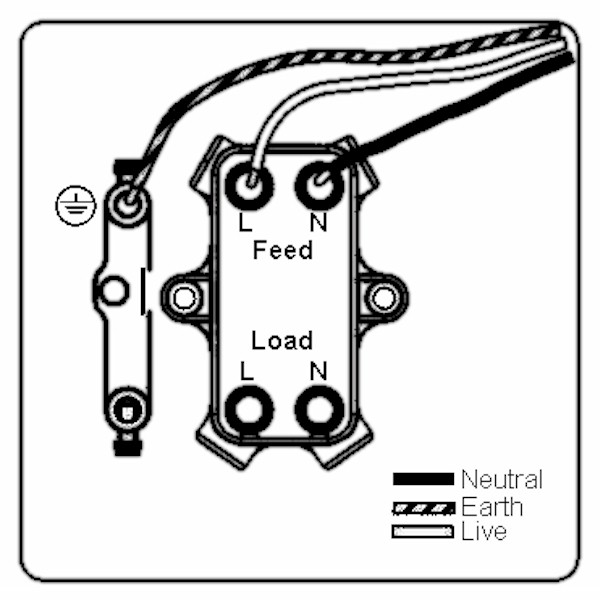

Wiring-Image

Item-Image

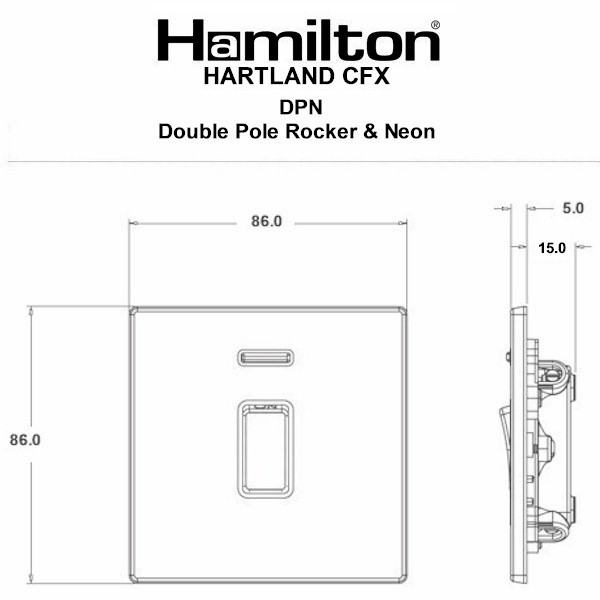

Dimension-Image

Luckins-TSI

388235115
Tech-Sheet-Page-Footer

71CDPNPB-W – Hartland CFX Polished Brass 1 gang 20AX Double Pole Rocker and Neon Polished Brass/White
product-code

S HT-C PB
family-code

S HART CFX
last-inv

24/04/2024
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533158179
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

27
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

12/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass
Subheader2

Hartland CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
description

Hart CFX PB 1g 20AX DP Rkr + Neon PB/WH
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
