Hart CFX EB 1g 20AX DP Rkr + Neon EB/BL

Hart CFX EB 1g 20AX DP Rkr + Neon EB/BL
Hart CFX EB 1g 20AX DP Rkr + Neon EB/BL - Image 2
Hart CFX EB 1g 20AX DP Rkr + Neon EB/BL - Image 3

Type

1 gang 20AX Double Pole Rocker + Neon

Plate Finish

Etrium Bronze

Insert Finish

Etrium Bronze/Black

Description

Hartland CFX Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon Etrium Bronze/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-027-002
Insert-Type

1 gang 20AX Double Pole Rocker + Neon
Insert-Colour

Etrium Bronze/Black
Uf-ItmLabelTechInsert

DPN
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon Etrium Bronze/Black
PlateFinish

Hartland CFX Etrium Bronze
EAN13-Barcode

5051164034603
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

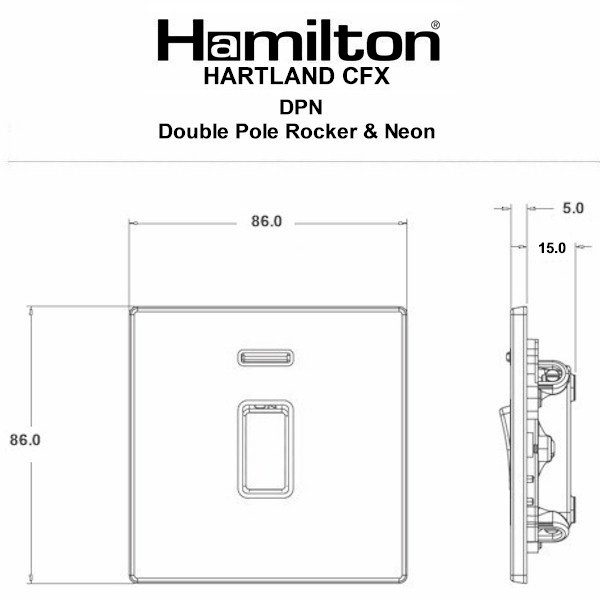

Dimension-Image

Luckins-TSI

436611908
Tech-Sheet-Page-Footer

7EBCDPNEB-B – Hartland CFX Etrium Bronze 1 gang 20AX Double Pole Rocker and Neon Etrium Bronze/Black
product-code

S HT-C EB
family-code

S HART CFX
last-inv

13/02/2026
unit-weight

181.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533438116
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

27
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Etrium Bronze
TrimColour

Black
Last-Updated-At-Hamilton

03/03/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Etrium Bronze
Subheader2

Hartland CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

181 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart CFX EB 1g 20AX DP Rkr + Neon EB/BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
