Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH

Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH
Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH - Image 2
Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH - Image 3
Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH - Image 4

Type

1 gang 20AX Double Pole Rocker + Neon

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome/White

Description

Hartland CFX Bright Chrome 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-027-002
Insert-Type

1 gang 20AX Double Pole Rocker + Neon
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

DPN
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Bright Chrome 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/White
PlateFinish

Hartland CFX Bright Chrome
EAN13-Barcode

5017504277949

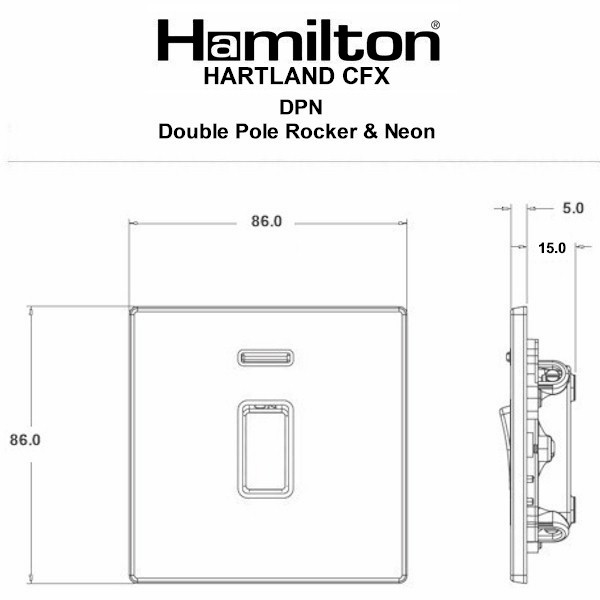

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

388239412
Tech-Sheet-Page-Footer

77CDPNBC-W – Hartland CFX Bright Chrome 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/White
product-code

S HT-C BC
family-code

S HART CFX
last-inv

29/05/2025
unit-weight

177.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533162479
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

27
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

31/12/2025
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Bright Chrome
Subheader2

Hartland CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

177 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart CFX BC 1g 20AX DP Rkr + Neon BC/WH
Height

86.0mm
Width

86.0mm
Depth

5.0mm
