Hart CFX BK 4g 20AX 2Way Toggle BK

Hart CFX BK 4g 20AX 2Way Toggle BK
Hart CFX BK 4g 20AX 2Way Toggle BK - Image 2
Hart CFX BK 4g 20AX 2Way Toggle BK - Image 3

Type

4 gang 20AX 2 Way FL Dolly

Plate Finish

Black Nickel

Insert Finish

Black Nickel

Description

Hartland CFX Black Nickel 4 gang 20AX 2 Way Toggle Black Nickel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-016-004
Insert-Type

4 gang 20AX 2 Way FL Dolly
Insert-Colour

Black Nickel
Uf-ItmLabelTechInsert

T24-FLDLY
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Black Nickel 4 gang 20AX 2 Way Toggle Black Nickel
PlateFinish

Hartland CFX Black Nickel
EAN13-Barcode

5017504289287

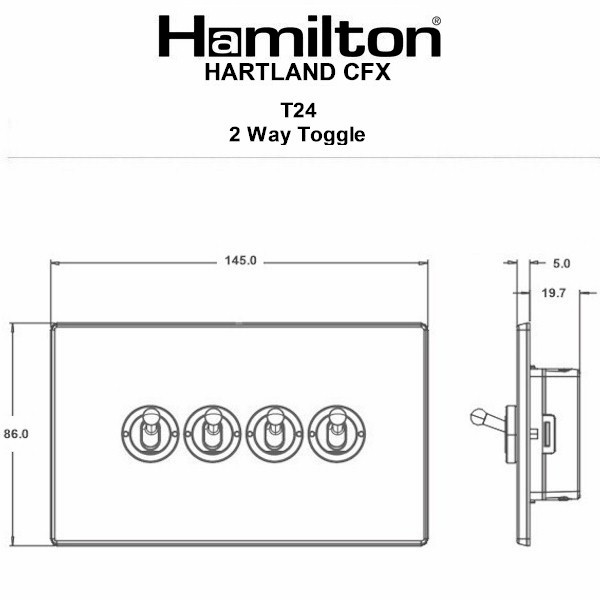

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

388241235
Tech-Sheet-Page-Footer

78CT24 – Hartland CFX Black Nickel 4 gang 20AX 2 Way Toggle Black Nickel
product-code

S HT-C BK
family-code

S HART CFX
last-inv

07/04/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533164286
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

16
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-NumberofGangs

4
WEB-InsertType

2 Way
MainInsertColour

Black Nickel
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Black Nickel
Subheader2

Hartland CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description

Hart CFX BK 4g 20AX 2Way Toggle BK
Height

86.0mm
Width

145.0mm
Depth

5.0mm
Module-Size-Height

53mm
Module-Size-Depth

23mm

Download datasheet
