Hart CFX SB 3g LEDITB100 2 way Dimmer SB

Hart CFX SB 3g LEDITB100 2 way Dimmer SB
Hart CFX SB 3g LEDITB100 2 way Dimmer SB - Image 2
Hart CFX SB 3g LEDITB100 2 way Dimmer SB - Image 3

Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Satin Brass

Insert Finish

Satin Brass

Description

Hartland CFX Satin Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-012-003
Insert-Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Satin Brass
Uf-ItmLabelTechInsert

3XLEDITB
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Satin Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Brass
PlateFinish

Hartland CFX Satin Brass
EAN13-Barcode

5017504079246

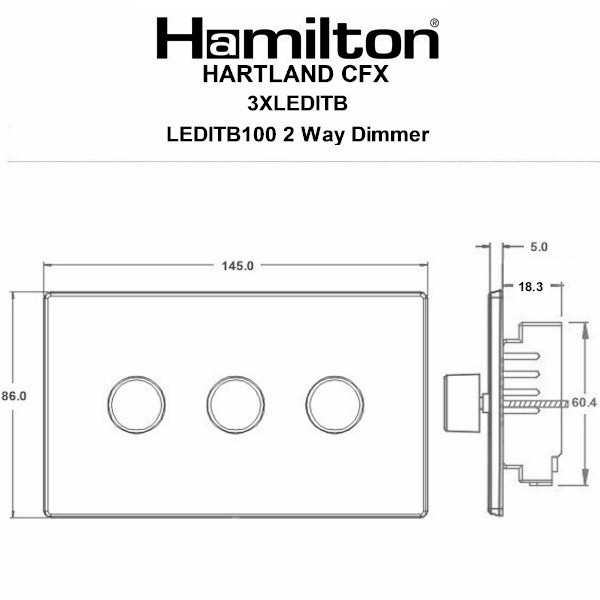

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403372461
Tech-Sheet-Page-Footer

72C3XLEDITB100 – Hartland CFX Satin Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Satin Brass
product-code

S HT-C SB
family-code

S HART CFX
last-inv

26/01/26
unit-weight

364.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533381085
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

012
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Satin Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Weight

364 GR
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Hart CFX SB 3g LEDITB100 2 way Dimmer SB
Height

86.0mm
Width

145.0mm
Depth

5.0mm
Plate-Finish

Satin Brass
Subheader2

Hartland CFX Range
