Hart CFX BC 2g LEDITB100 2 way Dimmer BC

SKU: 77C2XLEDITB100 Category:

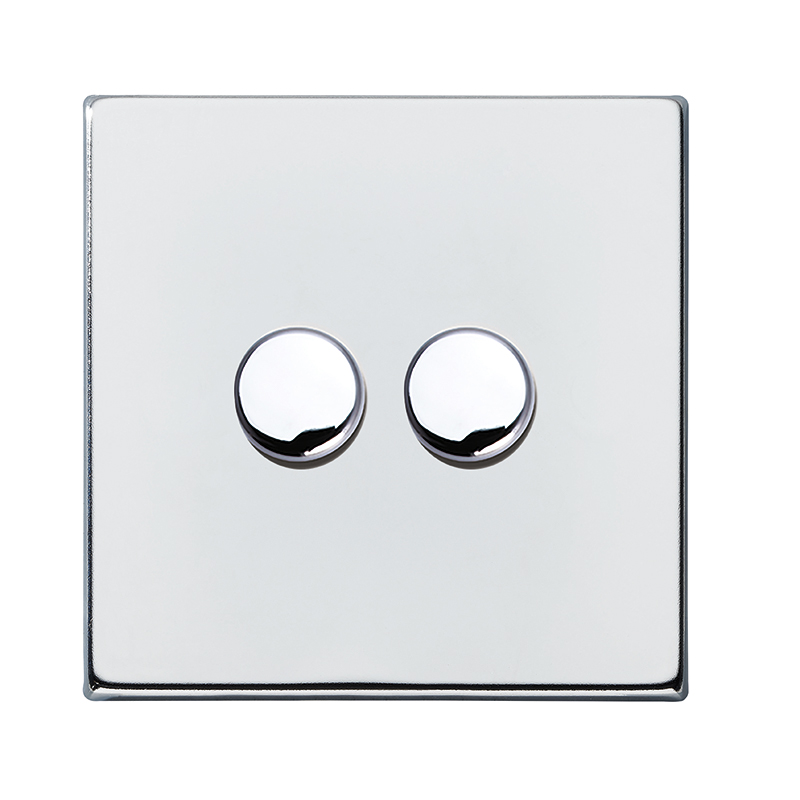

Hart CFX BC 2g LEDITB100 2 way Dimmer BC
Hart CFX BC 2g LEDITB100 2 way Dimmer BC - Image 2
Hart CFX BC 2g LEDITB100 2 way Dimmer BC - Image 3
SKU: 77C2XLEDITB100 Category:

Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Bright Chrome

Insert Finish

Bright Chrome

Description

Hartland CFX Bright Chrome 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-012-002
Insert-Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Bright Chrome
Uf-ItmLabelTechInsert

2XLEDITB
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Bright Chrome 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
PlateFinish

Hartland CFX Bright Chrome
EAN13-Barcode

5017504079536

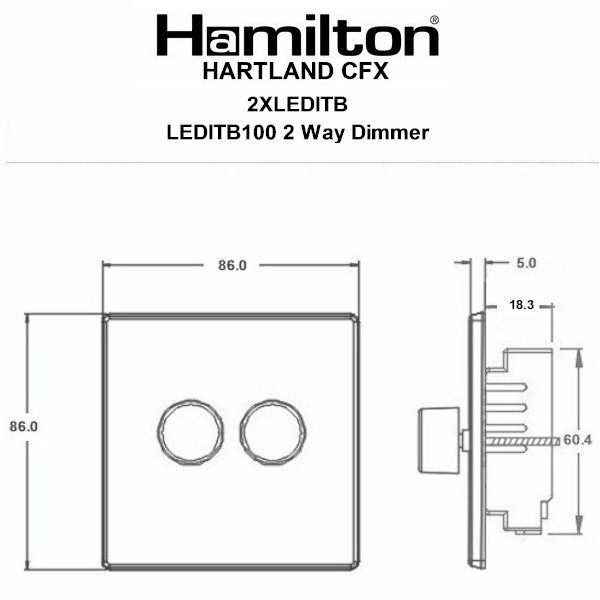

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403372539
Tech-Sheet-Page-Footer

77C2XLEDITB100 – Hartland CFX Bright Chrome 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
product-code

S HT-C BC
family-code

S HART CFX
last-inv

02/11/2026
unit-weight

241.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533381153
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

12
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

n/a
Last-Updated-At-Hamilton

02/11/2026
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Weight

241 GR
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Hart CFX BC 2g LEDITB100 2 way Dimmer BC
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Bright Chrome
Subheader2

Hartland CFX Dimmers
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1

Download datasheet
