Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red

SKU: 79CFNABR Category:
Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red
Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red - Image 2
Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red - Image 3
Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red - Image 4
SKU: 79CFNABR Category:

Type

1 gang 13A Fuse with Neon Halo

Plate Finish

Antique Brass

Insert Finish

Antique Brass/Red

Description

Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-026-013
Insert-Type

1 gang 13A Fuse with Neon Halo
Insert-Colour

Antique Brass/Red
Uf-ItmLabelTechInsert

FN
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red
PlateFinish

Hartland CFX Antique Brass
EAN13-Barcode

5017504292065
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

2 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733 with Fuse link to BS 1362
Commodity-Code

85361050

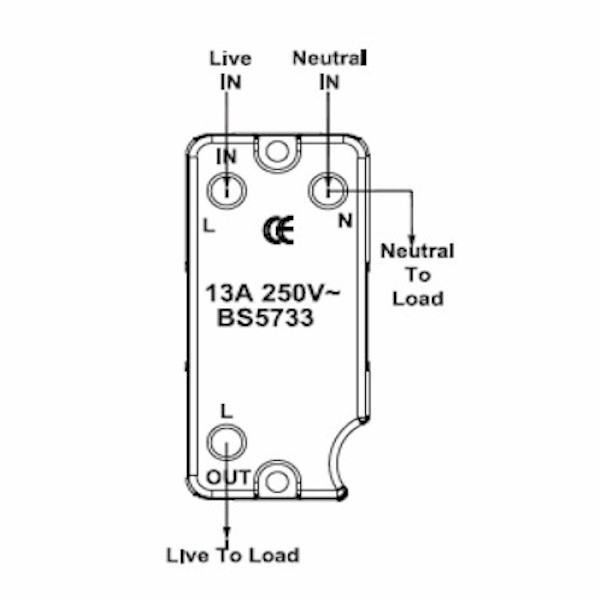

Wiring-Image

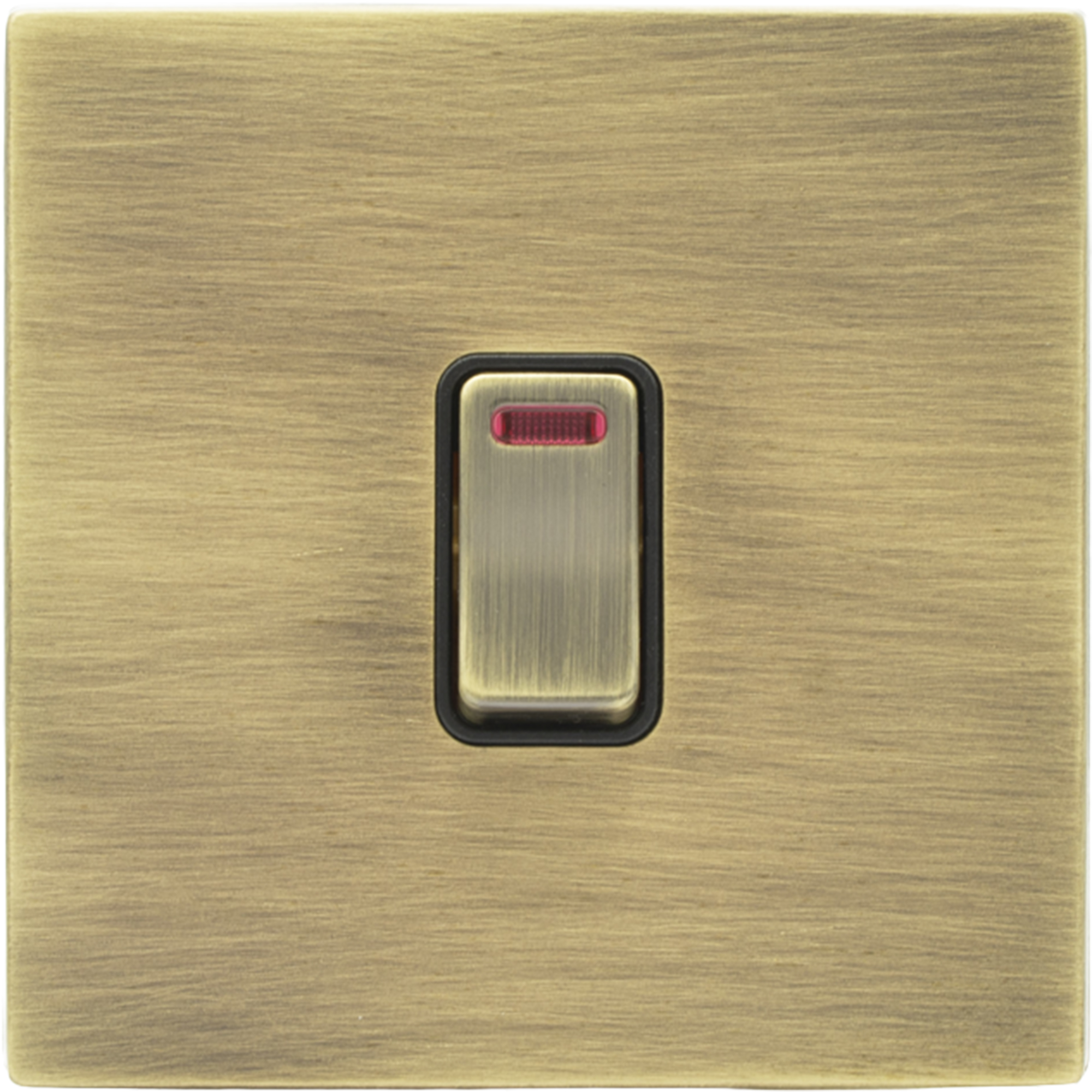

Item-Image

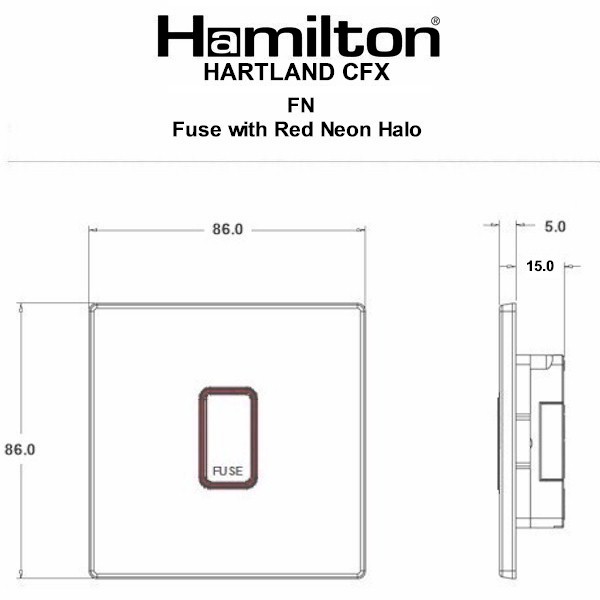

Dimension-Image

Luckins-TSI

388241594
Tech-Sheet-Page-Footer

79CFNAB-R – Hartland CFX Antique Brass 1 gang 13A Fuse with Neon Halo Antique Brass/Red
product-code

S HT-C AB
family-code

S HART CFX
last-inv

22/12/25
unit-weight

149.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533164642
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

026
InsertSortOrder

013
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Fuse with Neon Halo
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Red
Last-Updated-At-Hamilton

31/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Antique Brass
Subheader2

Hartland CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/srhp/#p=1
Weight

149 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

H-CFX AB 13A Fuse Red N-Halo AB/R
Height

86.0mm
Width

86.0mm
Depth

5.0mm
