Hart CFX MB Double Blank Plate

SKU: 7MBCBPD Category:
Hart CFX MB Double Blank Plate
Hart CFX MB Double Blank Plate - Image 2
SKU: 7MBCBPD Category:

Type

Double Blank Plate

Plate Finish

Matt Black

Insert Finish

N/A

Description

Hartland CFX Matt Black Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Matt Black Double Blank Plate
PlateFinish

Hartland CFX Matt Black
EAN13-Barcode

5017504091002
Dimensions(Nominal)

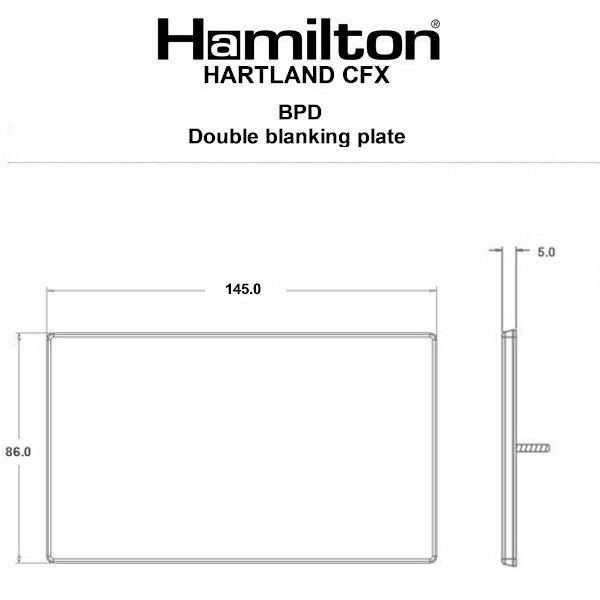

Double: Height = 86.0mm Width = 145.0mm Depth = 5.0mm
Switched-Poles

N/A
Current-Rating

n/a
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Wiring-Image

Dimension-Image

Luckins-TSI

433711636
Tech-Sheet-Page-Footer

7MBCBPD – Hartland CFX Matt Black Double Blank Plate
product-code

S HT-C MB
family-code

S HART CFX
last-inv

11/07/2023
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533418453
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

12
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Matt Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

12/05/2025
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Matt Black
Subheader2

Hartland CFX Blank Plates
IP-Rating

IP2XB
description

Hart CFX MB Double Blank Plate
Height

86.0mm
Width

145.0mm
Depth

5.0mm
