Super Stockists

Hart CFX AB Single Blank Plate

SKU: 79CBPS Category:

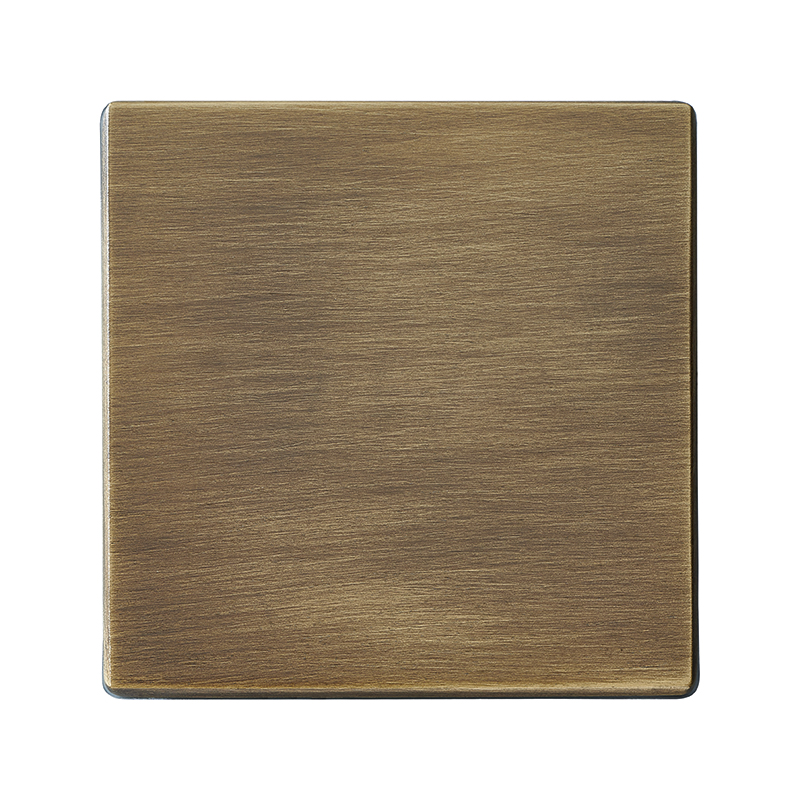

Hart CFX AB Single Blank Plate
Hart CFX AB Single Blank Plate - Image 2
Hart CFX AB Single Blank Plate - Image 3
SKU: 79CBPS Category:

Type

Single Blank Plate

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Hartland CFX Antique Brass Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX
Page-Sort-Order

012-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Hartland CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667 Hartland CFX is a Registered Design under Reference Nos. R21 = 3023446 SS2 =3023445
Item-Long-Description

Hartland CFX Antique Brass Single Blank Plate
PlateFinish

Hartland CFX Antique Brass
EAN13-Barcode

5017504299880
Dimensions(Nominal)

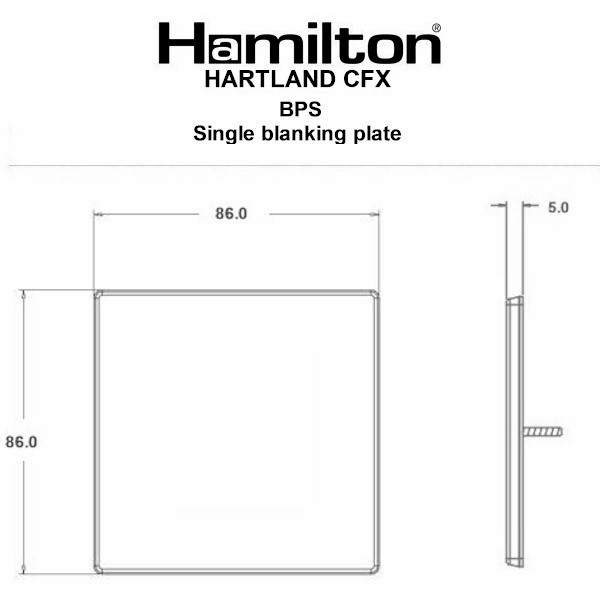

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74198090
Item-Image

Dimension-Image

Luckins-TSI

388241507
Tech-Sheet-Page-Footer

79CBPS – Hartland CFX Antique Brass Single Blank Plate
product-code

S HT-C AB
family-code

S HART CFX
last-inv

17/02/26
unit-weight

161.00000
weight-units

GR
Uf-LuckinsEDP

4533164558
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

012
HAM-SortOrder

036
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

21/02/26
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Antique Brass
Subheader2

Hartland CFX Range
Weight

161 GR
IP-Rating

IP2XB
description

Hart CFX AB Single Blank Plate
Height

86.0mm
Width

86.0mm
Depth

5.0mm

Download datasheet
