Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated TV (Female) (DAB Compatible) Black
HCFX Col Red 1g No-Isolat TV (Female) BL
SKU: 7RCDTVFB
Category: Hartland CFX Colours Television / Data
SKU: 7RCDTVFB
Category: Hartland CFX Colours Television / Data
Type
1 gang Non-Isolated TV (female) (DAB Compatible)Plate Finish
Pillar Box RedInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland CFX Colours |
| Page-Sort-Order | 013-031-001 |
| Insert-Type | 1 gang Non-Isolated TV (female) (DAB Compatible) |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | DTVF |
| Uf-HAM-Plate-Range | Hartland CFX Colours |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland CFX Colours |
| Patents-And-Trade-Marks | CFX is a Registered Trade Mark No 2398667 |
| Item-Long-Description | Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated TV (Female) (DAB Compatible) Black |
| PlateFinish | Hartland CFX Colours Pillar Box Red |
| EAN13-Barcode | 5017504007744 |

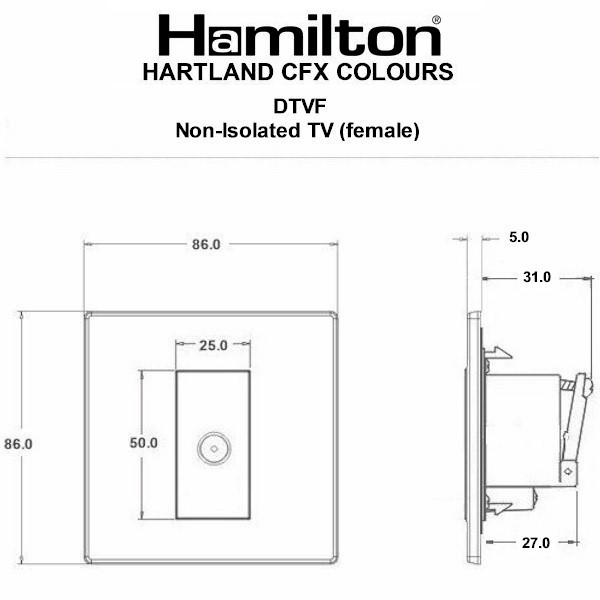

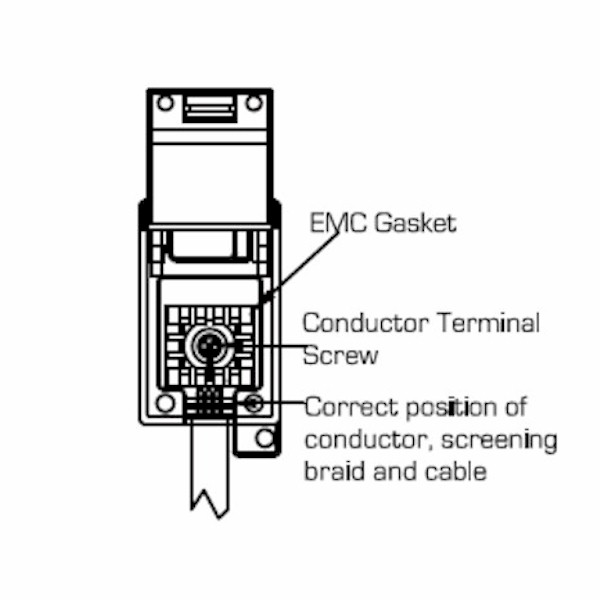

| Dimensions(Nominal) | Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 3 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 Multi-strand |
| Earth-Terminal-Capacity-5 | 1 x 6mm2 |
| Product-Class-1 | Must be earthed (ref BS7671 415.2.1) |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007 |
| EuroFix-Additional-Notes | TV Outlet (IEC 169-2 Female Socket) Usually used for FM (DAB) outlet |
| Frequencies-1 | TV DC=5-2200 MHz |
| Commodity-Code | 85367000 |
| Wiring-Image | WDDGTV.jpg |
| Item-Image | 7RCDTVFB.jpg |
| Dimension-Image | TD-7CCDTVF.jpg |
| Luckins-TSI | 394188298 |
| Tech-Sheet-Page-Footer | 7RCDTVFB – Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated TV (Female) (DAB Compatible) Black |
| product-code | S HCOL 7RC |
| family-code | S H CFX CL |
| last-inv | 08/11/2017 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533305469 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 13 |
| HAM-SortOrder | 31 |
| InsertSortOrder | 001 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Push |
| Uf-HAMPlateFinish | Pillar Box Red |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | TV Non-Isolated Female |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 13/02/2026 |
| Current-Rating | n/a |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Push |
| Minimum-Wall-Box-Depth | 35mm |
| IP-Rating | IP2XD |
| description | HCFX Col Red 1g No-Isolat TV (Female) BL |
| Height | 86.0mm |
| Width | 86.0mm |
| Depth | 5.0mm |
| Plate-Finish | Pillar Box Red |
| Subheader2 | Hartland CFX Colours Television / Data |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfyq/#p=1 |
