HCFX Col Red 1g No-Isolat TV 1in/1out BL

SKU: 7RCTVB Category:
HCFX Col Red 1g No-Isolat TV 1in/1out BL
HCFX Col Red 1g No-Isolat TV 1in/1out BL - Image 2
HCFX Col Red 1g No-Isolat TV 1in/1out BL - Image 3
HCFX Col Red 1g No-Isolat TV 1in/1out BL - Image 4
SKU: 7RCTVB Category:

Type

1 gang Non-Isolated TV 1in/1out

Plate Finish

Pillar Box Red

Insert Finish

Black

Description

Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated Television 1in/1out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX Colours
Page-Sort-Order

013-032-001
Insert-Type

1 gang Non-Isolated TV 1in/1out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TV
Uf-HAM-Plate-Range

Hartland CFX Colours
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX Colours
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated Television 1in/1out Black
PlateFinish

Hartland CFX Colours Pillar Box Red
EAN13-Barcode

5017504008246

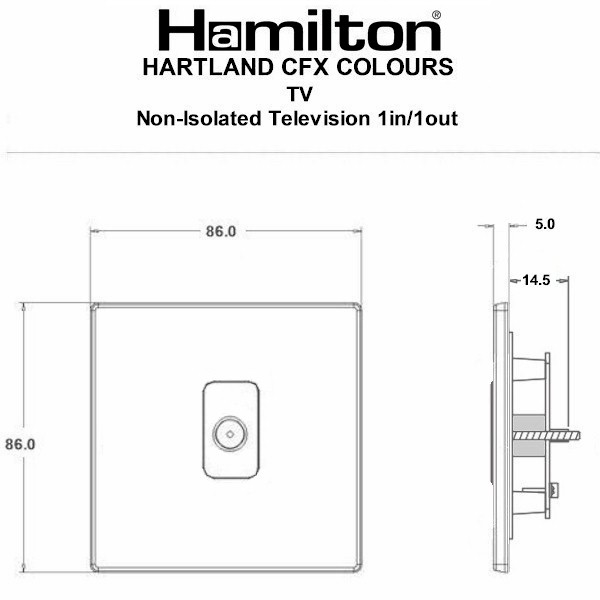

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

394188874
Tech-Sheet-Page-Footer

7RCTVB – Hartland CFX Colours Pillar Box Red 1 gang Non-Isolated Television 1in/1out Black
product-code

S HCOL 7RC
family-code

S H CFX CL
last-inv

03/05/2020
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533306044
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

13
HAM-SortOrder

32
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Pillar Box Red
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Non-Isolated
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

HCFX Col Red 1g No-Isolat TV 1in/1out BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
Plate-Finish

Pillar Box Red
Subheader2

Hartland CFX Colours Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
