HCFX Col BL 4 Euro Apert 100X50+Grid

SKU: 7BCEURO4 Category:
HCFX Col BL 4 Euro Apert 100X50+Grid
HCFX Col BL 4 Euro Apert 100X50+Grid - Image 2
HCFX Col BL 4 Euro Apert 100X50+Grid - Image 3
SKU: 7BCEURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Jet Black

Insert Finish

N/A

Description

Hartland CFX Colours EuroFix Jet Black Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX Colours
Page-Sort-Order

013-046-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Hartland CFX Colours EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX Colours
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Hartland CFX Colours EuroFix Jet Black Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Hartland CFX Colours EuroFix Jet Black
EAN13-Barcode

5017504067014

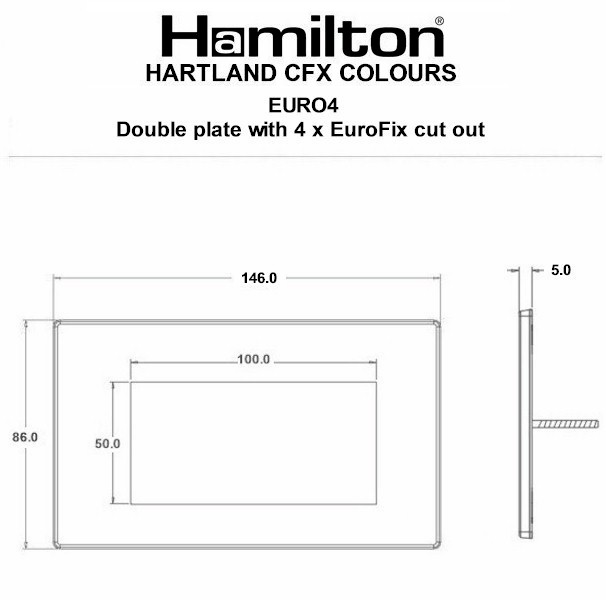

Dimensions(Nominal)

Double: Height = 86.0mm Width = 146.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

39206100
Item-Image

Dimension-Image

Luckins-TSI

394187503
Tech-Sheet-Page-Footer

7BCEURO4 – Hartland CFX Colours EuroFix Jet Black Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EFix 7BC
family-code

S H CFX CL
last-inv

18/12/2025
unit-weight

94.00000
weight-units

GR
Uf-LuckinsEDP

4533304677
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

13
HAM-SortOrder

46
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Jet Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

As Per Inserts
Weight

94 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

HCFX Col BL 4 Euro Apert 100X50+Grid
Height

86.0mm
Width

146.0mm
Depth

5.0mm
Plate-Finish

Jet Black
Subheader2

Hartland CFX Colours Eurofix
