HCFX Col Red 1g 45A DP+N Red Rkr/BL

SKU: 7RC45NB Category:
HCFX Col Red 1g 45A DP+N Red Rkr/BL
HCFX Col Red 1g 45A DP+N Red Rkr/BL - Image 2
HCFX Col Red 1g 45A DP+N Red Rkr/BL - Image 3
HCFX Col Red 1g 45A DP+N Red Rkr/BL - Image 4
SKU: 7RC45NB Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Pillar Box Red

Insert Finish

Red/Black

Description

Hartland CFX Colours Pillar Box Red 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX Colours
Page-Sort-Order

013-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Hartland CFX Colours
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland CFX Colours
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Hartland CFX Colours Pillar Box Red 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Hartland CFX Colours Pillar Box Red
EAN13-Barcode

5017504007447

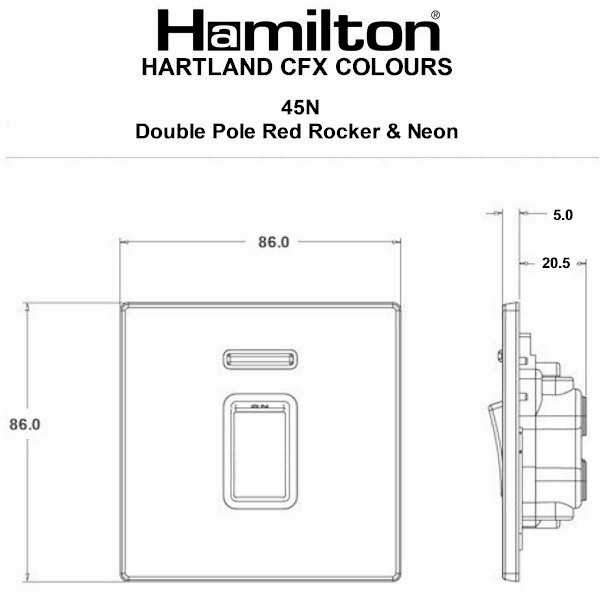

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 5.0mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

394188052
Tech-Sheet-Page-Footer

7RC45NB – Hartland CFX Colours Pillar Box Red 1 gang 45A Double Pole Rocker and Neon Red/Black
product-code

S HCOL 7RC
family-code

S H CFX CL
last-inv

31/08/2021
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533305223
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

13
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Pillar Box Red
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

23/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Pillar Box Red
Subheader2

Hartland CFX Colours Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

HCFX Col Red 1g 45A DP+N Red Rkr/BL
Height

86.0mm
Width

86.0mm
Depth

5.0mm
