HCFX Col BL 4g LEDITB100 2 way Dimmer BL

SKU: 7BC4XLEDITB100BL Category:
HCFX Col BL 4g LEDITB100 2 way Dimmer BL
HCFX Col BL 4g LEDITB100 2 way Dimmer BL - Image 2
HCFX Col BL 4g LEDITB100 2 way Dimmer BL - Image 3
SKU: 7BC4XLEDITB100BL Category:

Type

4 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Jet Black

Insert Finish

Black

Description

Hartland CFX Colours Jet Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland CFX Colours
Page-Sort-Order

013-012-004
Insert-Type

4 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Black
Uf-ItmLabelTechInsert

4XLEDITB
Uf-HAM-Plate-Range

Hartland CFX Colours
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland CFX Colours
Patents-And-Trade-Marks

CFX is a Registered Trade Mark No 2398667
Item-Long-Description

Hartland CFX Colours Jet Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black
PlateFinish

Hartland CFX Colours Jet Black
EAN13-Barcode

5017504079758

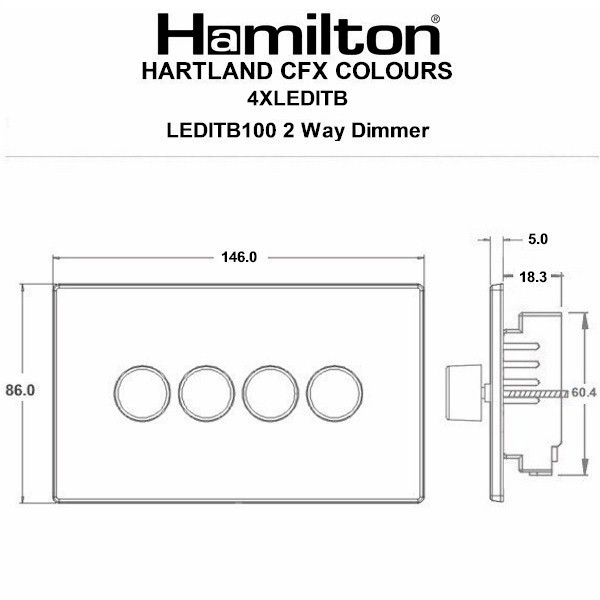

Dimensions(Nominal)

Double: Height = 86.0mm Width = 146.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403364437
Tech-Sheet-Page-Footer

7BC4XLEDITB100BL – Hartland CFX Colours Jet Black 4 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black
product-code

S HCOL 7BC
family-code

S H CFX CL
last-inv

02/10/25
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533380549
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

013
HAM-SortOrder

012
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Push
Uf-HAMPlateFinish

Jet Black
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

4
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Push
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

HCFX Col BL 4g LEDITB100 2 way Dimmer BL
Height

86.0mm
Width

146.0mm
Depth

5.0mm
Plate-Finish

Jet Black
Subheader2

Hartland CFXColours Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
