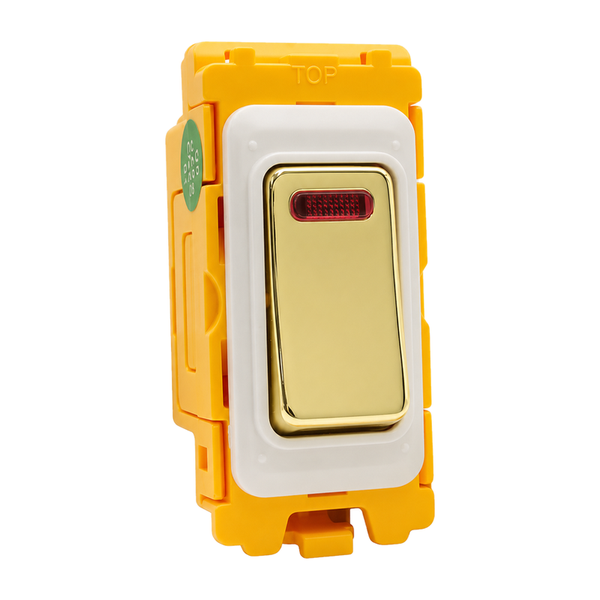

FLM 20AX DP Rkr+Neon PB + BL/WH Bzls

FLM 20AX DP Rkr+Neon PB + BL/WH Bzls
FLM 20AX DP Rkr+Neon PB + BL/WH Bzls - Image 2
FLM 20AX DP Rkr+Neon PB + BL/WH Bzls - Image 3

Type

20AX Double Pole Rocker + Neon Module + Bezel

Plate Finish

N/A

Insert Finish

Polished Brass/Black/White

Description

Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Polished Brass and Black/White Bezels

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

GRID-IT FL
Page-Sort-Order

021-063-004
Subheader2

GRID-IT FL Front Loading Modules
Insert-Type

20AX Double Pole Rocker + Neon Module + Bezel
Plate-Finish

N/A
Insert-Colour

Polished Brass/Black/White
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

FLDPN
Uf-HAM-Plate-Range

GRID-IT FL Module
Uf-HAMPlate-Generic-Size

Module
Range-Name

GRID-IT FL
Item-Long-Description

Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Polished Brass and Black/White Bezels
PlateFinish

GRID-IT FL Module N/A
EAN13-Barcode

5052750027870
Dimensions(Nominal)

Module: Height = Width = Depth =
Weight

35 GR
Switched-Poles

Double
Current-Rating

20AX
Voltage

220/250V AC
Maximum-Load

20 Amp inductive
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Module-Size

Height = 53mm Width = 25mm Depth = 23mm
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

438287987
Tech-Sheet-Page-Footer

FLDPN-PB – Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Polished Brass and Black/White Bezels
description

FLM 20AX DP Rkr+Neon PB + BL/WH Bzls
product-code

S GRFL RKR
family-code

S GD-IT FL
unit-weight

35.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533456237
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

21
HAM-SortOrder

63
InsertSortOrder

004
Generic-Size

Module
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1 Module GRID-IT FL Insert
MainInsertColour

Polished Brass
TrimColour

Black/White
Last-Updated-At-Hamilton

30/01/2026

Download datasheet
