FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls

FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls
FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls - Image 2
FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls - Image 3
FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls - Image 4

Type

20AX Double Pole Rocker + Neon Module + Bezel

Plate Finish

N/A

Insert Finish

Bright Chrome/Black/White/Quartz Grey

Description

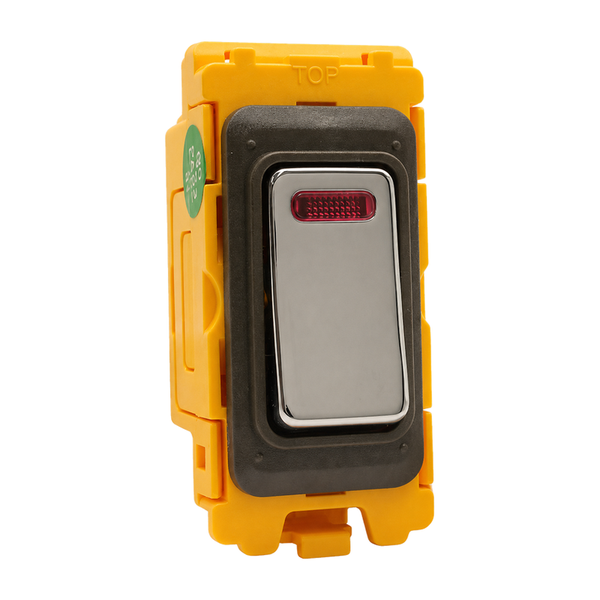

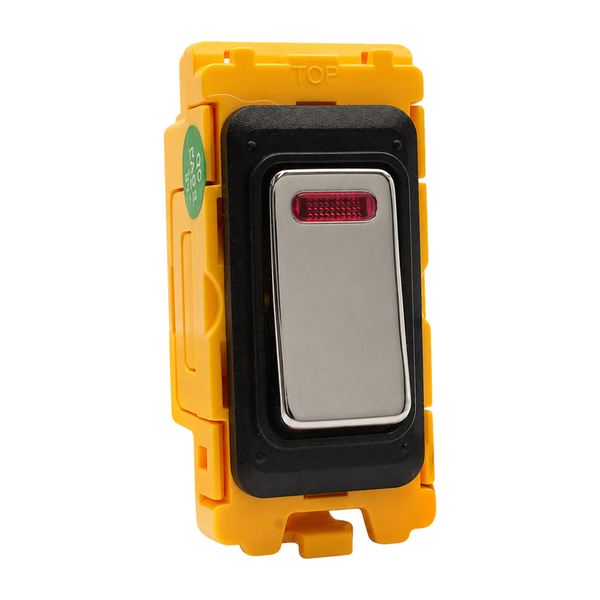

Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Bright Chrome and Black/White/Quartz Grey Bezels

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

GRID-IT FL
Page-Sort-Order

021-063-004
Subheader2

GRID-IT FL Front Loading Modules
Insert-Type

20AX Double Pole Rocker + Neon Module + Bezel
Plate-Finish

N/A
Insert-Colour

Bright Chrome/Black/White/Quartz Grey
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

FLDPN
Uf-HAM-Plate-Range

GRID-IT FL Module
Uf-HAMPlate-Generic-Size

Module
Range-Name

GRID-IT FL
Item-Long-Description

Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Bright Chrome and Black/White/Quartz Grey Bezels
PlateFinish

GRID-IT FL Module N/A
EAN13-Barcode

5052750027849
Dimensions(Nominal)

Module: Height = Width = Depth =
Weight

35 GR
Switched-Poles

Double
Current-Rating

20AX
Voltage

220/250V AC
Maximum-Load

20 Amp inductive
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Module-Size

Height = 53mm Width = 25mm Depth = 23mm
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

438287903
Tech-Sheet-Page-Footer

FLDPN-BC – Grid-IT Front Loading 20AX Double Pole Rocker + Neon Module Bright Chrome and Black/White/Quartz Grey Bezels
description

FLM 20AX DP Rkr+N BC + BL/WH/QG Bzls
product-code

S GRFL RKR
family-code

S GD-IT FL
last-inv

08/01/2025
unit-weight

35.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533456156
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

21
HAM-SortOrder

63
InsertSortOrder

004
Generic-Size

Module
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1 Module GRID-IT FL Insert
MainInsertColour

Bright Chrome
TrimColour

Black/White/Quartz Grey
Last-Updated-At-Hamilton

30/01/2026
