FLM 20AX 2 Way Rkr RB + BL Bezel

FLM 20AX 2 Way Rkr RB + BL Bezel
FLM 20AX 2 Way Rkr RB + BL Bezel - Image 2
FLM 20AX 2 Way Rkr RB + BL Bezel - Image 3

Type

20AX 2 Way Rocker Module + Bezel

Plate Finish

N/A

Insert Finish

Richmond Bronze/Black

Description

Grid-IT Front Loading 20AX 2 Way Rocker Module Richmond Bronze and Black Bezel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

GRID-IT FL
Page-Sort-Order

021-063-002
Subheader2

Grid-It FL Range
Insert-Type

20AX 2 Way Rocker Module + Bezel
Plate-Finish

N/A
Insert-Colour

Richmond Bronze/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Uf-ItmLabelTechInsert

FL212
Uf-HAM-Plate-Range

GRID-IT FL Module
Uf-HAMPlate-Generic-Size

Module
Range-Name

GRID-IT FL
Item-Long-Description

Grid-IT Front Loading 20AX 2 Way Rocker Module Richmond Bronze and Black Bezel
PlateFinish

GRID-IT FL Module N/A
EAN13-Barcode

5017503000296
Dimensions(Nominal)

Module: Height = Width = Depth =
Weight

35 GR
Switched-Poles

Single
Current-Rating

20AX
Voltage

220/250V AC
Maximum-Load

20 Amp inductive
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1

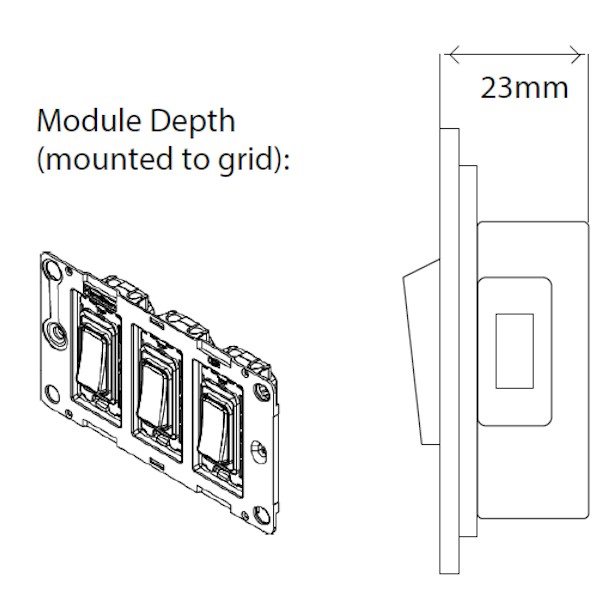

Module-Size

Height = 53mm Width = 25mm Depth = 23mm
Commodity-Code

85365080
Wiring-Image

Dimension-Image

Luckins-TSI

438287628
Tech-Sheet-Page-Footer

FL212-RB – Grid-IT Front Loading 20AX 2 Way Rocker Module Richmond Bronze and Black Bezel
description

FLM 20AX 2 Way Rkr RB + BL Bezel
product-code

S GRFL RKR
family-code

S GD-IT FL
last-inv

16/02/26
unit-weight

35.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533455872
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

021
HAM-SortOrder

063
InsertSortOrder

002
Generic-Size

Module
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way
WEB-NumberofGangs

1 Module GRID-IT FL Insert
MainInsertColour

Richmond Bronze
TrimColour

Black
Last-Updated-At-Hamilton

16/02/26

Download datasheet
