E/Fix Non-Isolated Satellite 25×50 WH

E/Fix Non-Isolated Satellite 25x50 WH
E/Fix Non-Isolated Satellite 25x50 WH - Image 2
E/Fix Non-Isolated Satellite 25x50 WH - Image 3

Type

25x50mm Module Non-Isolated Satellite

Plate Finish

N/A

Insert Finish

White

Description

EuroFix 25x50mm Module Non-Isolated Satellite White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

EuroFix
Page-Sort-Order

020-051-002
Insert-Type

25x50mm Module Non-Isolated Satellite
Insert-Colour

White
Uf-ItmLabelTechInsert

MOD-SATN
Uf-HAM-Plate-Range

EuroFix Module
Uf-HAMPlate-Generic-Size

Module
Range-Name

EuroFix
Patents-And-Trade-Marks

EuroFix is a Registered Trade Mark No. 2560270
Item-Long-Description

EuroFix 25x50mm Module Non-Isolated Satellite White
PlateFinish

EuroFix Module N/A
EAN13-Barcode

5.0175E+12
Dimensions(Nominal)

Module: Height = Width = Depth =
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/wiring_images/WDTV.jpg
Item-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/item_images/MOD-SATNW.jpg

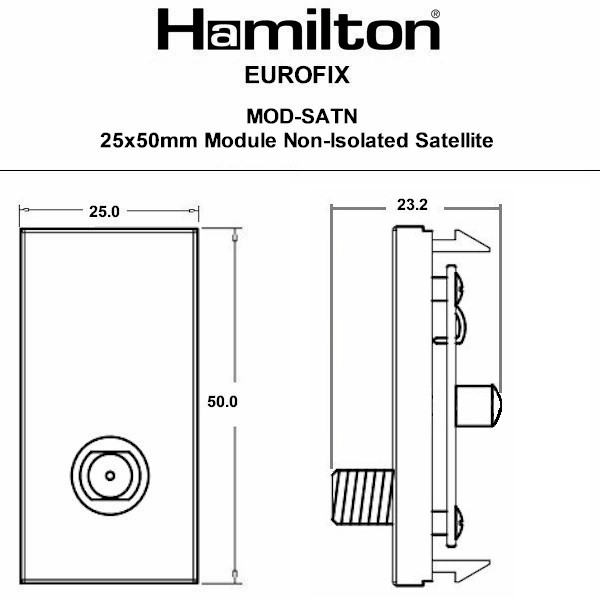

Dimension-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/dimension_images/TD-MOD-SATN.jpg
Luckins-TSI

387397177
product-code

S EFix INS
family-code

S EUROFIX
last-inv

03/02/2026
unit-weight

18
weight-units

GR
Uf-LuckinsEDP

4533153695
Uf-HAMInnerBoxQty

20
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

20
HAM-SortOrder

51
InsertSortOrder

2
Generic-Size

Module
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Satellite Non-Isolated
WEB-NumberofGangs

25x50mm Module Insert
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

03/04/2026
Current-Rating

n/a
Weight

18 GR
IP-Rating

IP2XD
Plate-Finish

N/A
Subheader10895

EuroFix Modules
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
