E/Fix 2xGold Phono/Audio Skt 25×50 BL

E/Fix 2xGold Phono/Audio Skt 25x50 BL
E/Fix 2xGold Phono/Audio Skt 25x50 BL - Image 2

Type

25x50mm Module 2 x Gold Phono/Audio Socket (1xRed 1xBlack)

Plate Finish

N/A

Insert Finish

Black

Description

EuroFix 25x50mm Module 2 x Gold Phono/Audio Socket (1xRed 1xBlack) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

EuroFix
Page-Sort-Order

020-051-
Insert-Type

25x50mm Module 2 x Gold Phono/Audio Socket (1xRed 1xBlack)
Insert-Colour

Black
Uf-ItmLabelTechInsert

MOD-RCA2
Uf-HAM-Plate-Range

EuroFix Module
Uf-HAMPlate-Generic-Size

Module
Range-Name

EuroFix
Patents-And-Trade-Marks

EuroFix is a Registered Trade Mark No. 2560270
Item-Long-Description

EuroFix 25x50mm Module 2 x Gold Phono/Audio Socket (1xRed 1xBlack) Black
PlateFinish

EuroFix Module N/A
EAN13-Barcode

5.0175E+12
Dimensions(Nominal)

Module: Height = Width = Depth =
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Ambient-Operating-Temperatur

-25° to +70°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Commodity-Code

85366990
Wiring-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/wiring_images/
Item-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/item_images/MOD-RCA2B.jpg

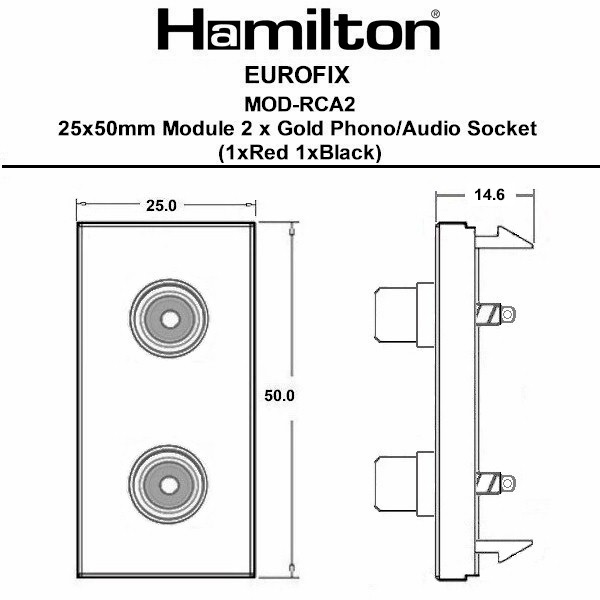

Dimension-Image

https://hamiltonng15.s3.eu-west-2.amazonaws.com/dimension_images/TD-MOD-RCA2.jpg
Luckins-TSI

393800894
product-code

S EFix INS
family-code

S EUROFIX
last-inv

12/09/2025
unit-weight

9
weight-units

GR
Uf-LuckinsEDP

4533295595
Uf-HAMInnerBoxQty

20
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

20
HAM-SortOrder

51
Generic-Size

Module
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Phono/Audio Socket 2 gang
WEB-NumberofGangs

25x50mm Module Insert
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

03/04/2026
Current-Rating

Mating Connector Dependant
Weight

9 GR
IP-Rating

IP2XD
Plate-Finish

N/A
Subheader10835

EuroFix Modules
