ELEM IP66 1 gang 20AX DP Switch+ Neon

SKU: ELM20DPNGY Category:
ELEM IP66 1 gang 20AX DP Switch+ Neon
ELEM IP66 1 gang 20AX DP Switch+ Neon - Image 2
SKU: ELM20DPNGY Category:

Type

1 gang 20AX Double Pole Switch+ Neon

Plate Finish

Grey

Insert Finish

White/White

Description

Elemento Grey IP66 1 gang 20AX Double Pole Switch+ Neon White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Elemento IP
Page-Sort-Order

051-081-202
Insert-Type

1 gang 20AX Double Pole Switch+ Neon
Insert-Colour

White/White
Range-Name

Elemento IP
Patents-And-Trade-Marks

Hamilton Elemento is a Registered Trade Mark No. 3099097
Item-Long-Description

Elemento Grey IP66 1 gang 20AX Double Pole Switch+ Neon White/White
EAN13-Barcode

5017503940554
Commodity-Code

85365080
Luckins-TSI

407290329
Tech-Sheet-Page-Footer

ELM20DPNGY – Elemento Grey IP66 1 gang 20AX Double Pole Switch+ Neon White/White
product-code

S TRD- IP
family-code

S TRD ELEM
last-inv

19/02/26
unit-weight

201.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533396562
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

051
HAM-SortOrder

081
InsertSortOrder

202
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

White
Last-Updated-At-Hamilton

19/02/26
Uf-ItmLabelTechInsert

TRD-ELM-DPN
Uf-HAM-Plate-Range

Elemento
Uf-HAMPlate-Generic-Size

Single
PlateFinish

Elemento Grey

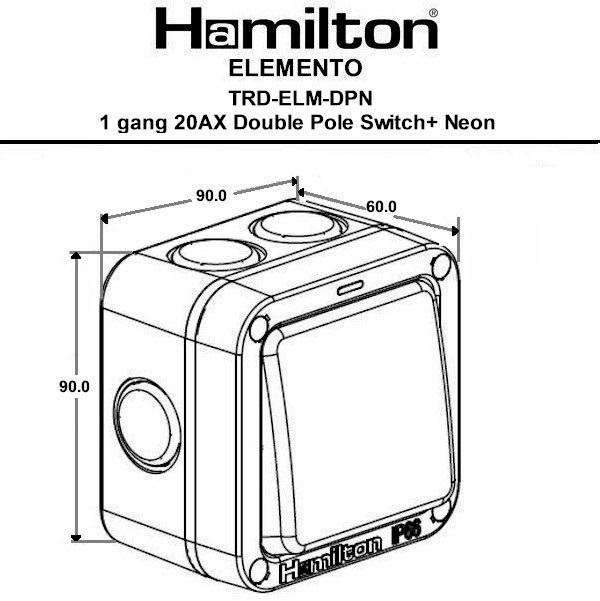

Dimensions(Nominal)

Single: Height = 90.0mm Width = 90.0mm Depth = 60mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Maximum-Installation-Altitud

2000m
Standard-Approval

IP66 & BS EN 60669-1
Item-Image

Dimension-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Plate-Finish

Grey
Subheader2

Elemento Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/wago/#p=1
Weight

201 GR
Voltage

220/250V AC
IP-Rating

IP66
description

ELEM IP66 1 gang 20AX DP Switch+ Neon
Height

90.0mm
Width

90.0mm
Depth

60mm
