ELEM IP66 1 Gang 20AX 2 Way Rtr Rkr Neon

SKU: ELMR2WNGY Category:
ELEM IP66 1 Gang 20AX 2 Way Rtr Rkr Neon
ELEM IP66 1 Gang 20AX 2 Way Rtr Rkr Neon - Image 2
SKU: ELMR2WNGY Category:

Type

1 gang 2 Way 20AX Retractive Rocker Neon

Plate Finish

Grey

Insert Finish

Grey/Grey

Description

Elemento Grey IP66 1 gang 20AX 2 Way Retractive Switch + Neon Grey/Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Elemento IP
Page-Sort-Order

051-081-251
Insert-Type

1 gang 2 Way 20AX Retractive Rocker Neon
Insert-Colour

Grey/Grey
Range-Name

Elemento IP
Patents-And-Trade-Marks

Hamilton Elemento is a Registered Trade Mark No. 3099097
Item-Long-Description

Elemento Grey IP66 1 gang 20AX 2 Way Retractive Switch + Neon Grey/Grey
EAN13-Barcode

5017503940561
Commodity-Code

85365080
Luckins-TSI

407289932
Tech-Sheet-Page-Footer

ELMR2WNGY – Elemento Grey IP66 1 gang 20AX 2 Way Retractive Switch + Neon Grey/Grey
product-code

S TRD- IP
family-code

S TRD ELEM
last-inv

02/02/26
unit-weight

204.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533396177
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

051
HAM-SortOrder

081
InsertSortOrder

251
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

2 Way Retractive + Neon
WEB-NumberofGangs

1
MainInsertColour

Grey
TrimColour

Grey
Last-Updated-At-Hamilton

12/02/26
Uf-ItmLabelTechInsert

TRD-ELM-R2WN
Uf-HAM-Plate-Range

Elemento
Uf-HAMPlate-Generic-Size

Single
PlateFinish

Elemento Grey

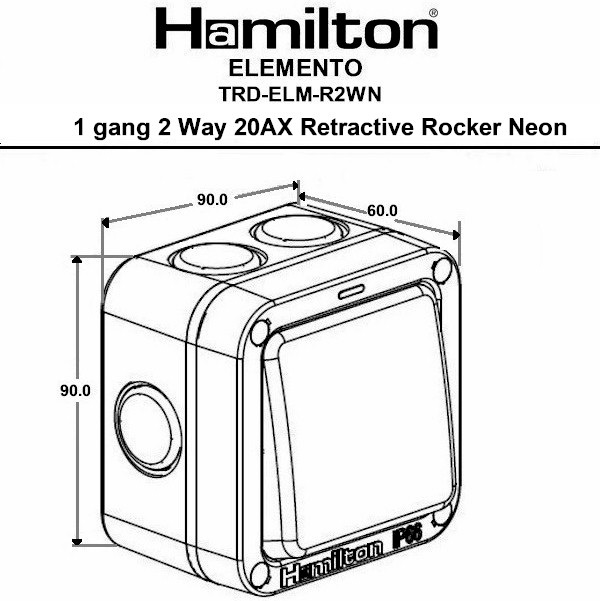

Dimensions(Nominal)

Single: Height = 90.0mm Width = 90.0mm Depth = 60mm
Switched-Poles

Single
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Maximum-Installation-Altitud

2000m
Standard-Approval

IP66 & BS EN 60669-1
Item-Image

Dimension-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Plate-Finish

Grey
Subheader2

Elemento Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/wago/#p=1
Weight

204 GR
Voltage

220/250V AC
IP-Rating

IP66
description

ELEM IP66 1 Gang 20AX 2 Way Rtr Rkr Neon
Height

90.0mm
Width

90.0mm
Depth

60mm
