ELEM IP66 2 Gang 13A Switched Skt Outlet

SKU: ELMSS2GY Category:
ELEM IP66 2 Gang 13A Switched Skt Outlet
ELEM IP66 2 Gang 13A Switched Skt Outlet - Image 2
ELEM IP66 2 Gang 13A Switched Skt Outlet - Image 3
ELEM IP66 2 Gang 13A Switched Skt Outlet - Image 4
SKU: ELMSS2GY Category:

Type

2 gang 13A Double Pole Switched Socket Lockable

Plate Finish

Grey

Insert Finish

White/White

Description

Elemento Grey IP66 Lockable 2 gang 13A Switched Socket Outlet White/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Elemento IP
Page-Sort-Order

051-082-202
Insert-Type

2 gang 13A Double Pole Switched Socket Lockable
Insert-Colour

White/White
Range-Name

Elemento IP
Patents-And-Trade-Marks

Hamilton Elemento is a Registered Trade Mark No. 3099097
Item-Long-Description

Elemento Grey IP66 Lockable 2 gang 13A Switched Socket Outlet White/White
EAN13-Barcode

5017503940523
Commodity-Code

85366990
Luckins-TSI

406102942
Tech-Sheet-Page-Footer

ELMSS2GY – Elemento Grey IP66 Lockable 2 gang 13A Switched Socket Outlet White/White
product-code

S TRD- IP
family-code

S TRD ELEM
last-inv

26/02/26
unit-weight

714.80000
weight-units

GR
Uf-LuckinsEDP

4533395275
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

10
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

051
HAM-SortOrder

082
InsertSortOrder

202
Generic-Size

Double-Mod
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Lockable Switched Socket
WEB-NumberofGangs

2
MainInsertColour

White
TrimColour

White
Last-Updated-At-Hamilton

26/02/26
Uf-ItmLabelTechInsert

TRD-ELM-SS2
Uf-HAM-Plate-Range

Elemento
Uf-HAMPlate-Generic-Size

Double-Mod
PlateFinish

Elemento Grey

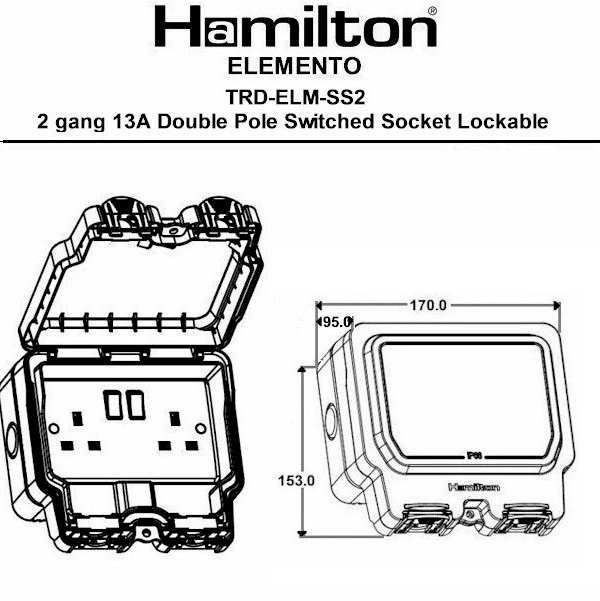

Dimensions(Nominal)

Double-Mod: Height = 153.0mm Width = 170.0mm Depth = 95.0mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-5

1x1mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Maximum-Installation-Altitud

2000m
Standard-Approval

IP66 & BS1363-2
Wiring-Image

Item-Image

Dimension-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Plate-Finish

Grey
Subheader2

Elemento Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/wago/#p=1
Weight

715 GR
Voltage

220/250V AC
IP-Rating

IP66
description

ELEM IP66 2 Gang 13A Switched Skt Outlet
Height

153.0mm
Width

170.0mm
Depth

95.0mm
