ELEM IP66 1 Gang 13A Unswt Skt Outlet

SKU: ELMUS13GY Category:
ELEM IP66 1 Gang 13A Unswt Skt Outlet
ELEM IP66 1 Gang 13A Unswt Skt Outlet - Image 2
ELEM IP66 1 Gang 13A Unswt Skt Outlet - Image 3
ELEM IP66 1 Gang 13A Unswt Skt Outlet - Image 4
SKU: ELMUS13GY Category:

Type

1 gang 13A Unswitched Socket Lockable

Plate Finish

Grey

Insert Finish

White

Description

Elemento Grey IP66 Lockable 1 gang 13A Unswitched Socket Outlet White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Elemento IP
Page-Sort-Order

051-082-207
Insert-Type

1 gang 13A Unswitched Socket Lockable
Insert-Colour

White
Range-Name

Elemento IP
Patents-And-Trade-Marks

Hamilton Elemento is a Registered Trade Mark No. 3099097
Item-Long-Description

Elemento Grey IP66 Lockable 1 gang 13A Unswitched Socket Outlet White
EAN13-Barcode

5017503940530
Commodity-Code

85366990
Luckins-TSI

406102955
Tech-Sheet-Page-Footer

ELMUS13GY – Elemento Grey IP66 Lockable 1 gang 13A Unswitched Socket Outlet White
product-code

S TRD- IP
family-code

S TRD ELEM
last-inv

19/09/2025
unit-weight

471.00000
weight-units

GR
Uf-LuckinsEDP

4533395288
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

51
HAM-SortOrder

82
InsertSortOrder

207
Generic-Size

Single-Mod
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Lockable Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

02/12/2026
Uf-ItmLabelTechInsert

TRD-ELM-US13
Uf-HAM-Plate-Range

Elemento
Uf-HAMPlate-Generic-Size

Single-Mod
PlateFinish

Elemento Grey

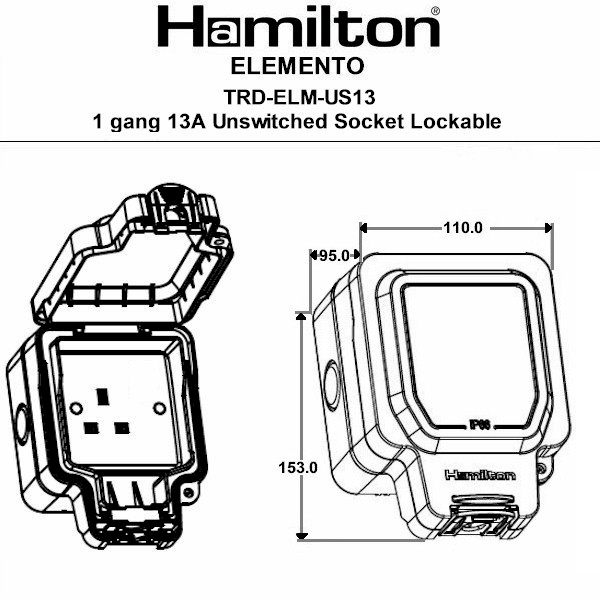

Dimensions(Nominal)

Single-Mod: Height = 153.0mm Width = 110.0mm Depth = 95.0mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x1mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Maximum-Installation-Altitud

2000m
Standard-Approval

IP66 & BS 1363 + IEC 60529:2001
Wiring-Image

Item-Image

Dimension-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Plate-Finish

Grey
Subheader2

Elemento IP Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/wago/#p=1
Weight

471 GR
Voltage

220/250V AC
IP-Rating

IP66
description

ELEM IP66 1 Gang 13A Unswt Skt Outlet
Height

153.0mm
Width

110.0mm
Depth

95.0mm
