Cher V SC 1g Telephone Slave BL

SKU: 96TCSB Category:
Cher V SC 1g Telephone Slave BL
Cher V SC 1g Telephone Slave BL - Image 2
Cher V SC 1g Telephone Slave BL - Image 3
Cher V SC 1g Telephone Slave BL - Image 4
SKU: 96TCSB Category:

Type

1 gang Telephone Slave

Plate Finish

Satin Chrome

Insert Finish

Black

Description

Cheriton Victorian Satin Chrome 1 gang Telephone Slave Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-031-004
Insert-Type

1 gang Telephone Slave
Insert-Colour

Black
Uf-ItmLabelTechInsert

TCS
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Satin Chrome 1 gang Telephone Slave Black
PlateFinish

Cheriton Victorian Box Satin Chrome
EAN13-Barcode

5017503411658

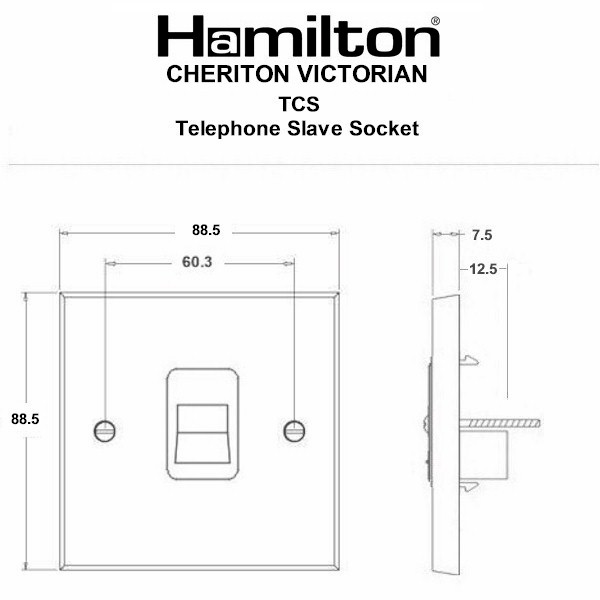

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387390213
Tech-Sheet-Page-Footer

96TCSB – Cheriton Victorian Satin Chrome 1 gang Telephone Slave Black
product-code

S CHER VSC
family-code

S CHER VIC
last-inv

24/02/26
unit-weight

157.50000
weight-units

GR
Uf-LuckinsEDP

4533148532
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

031
InsertSortOrder

004
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Slave
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

24/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Weight

158 GR
IP-Rating

IP2XD
description

Cher V SC 1g Telephone Slave BL
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Satin Chrome
Subheader2

Cheriton Victorian Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
