Cher V PB 1g Telephone Master BL

SKU: 92TCMB Category:
Cher V PB 1g Telephone Master BL
Cher V PB 1g Telephone Master BL - Image 2
Cher V PB 1g Telephone Master BL - Image 3
Cher V PB 1g Telephone Master BL - Image 4
SKU: 92TCMB Category:

Type

1 gang Telephone Master

Plate Finish

Polished Brass

Insert Finish

Black

Description

Cheriton Victorian Polished Brass 1 gang Telephone Master Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-031-003
Insert-Type

1 gang Telephone Master
Insert-Colour

Black
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Polished Brass 1 gang Telephone Master Black
PlateFinish

Cheriton Victorian Box Polished Brass
EAN13-Barcode

5017503371648

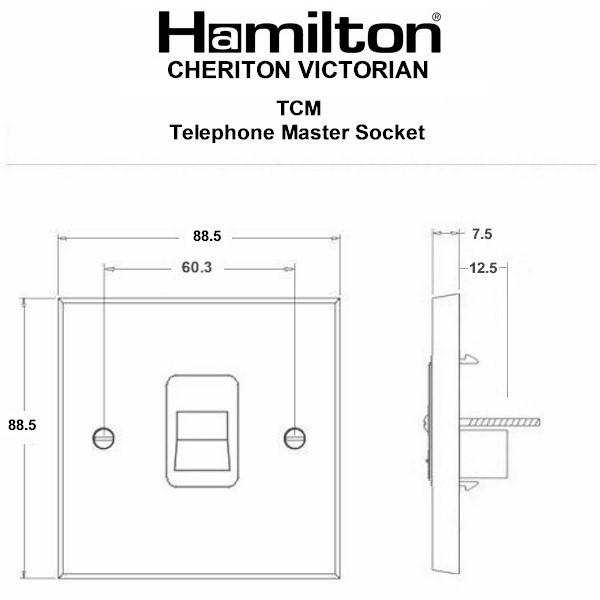

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385564193
Tech-Sheet-Page-Footer

92TCMB – Cheriton Victorian Polished Brass 1 gang Telephone Master Black
product-code

S CHER VPB
family-code

S CHER VIC
last-inv

11/01/24
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533123816
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

031
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

17/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Cher V PB 1g Telephone Master BL
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Polished Brass
Subheader2

Cheriton Victorian Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
