Cher V PB 1g RJ45 CAT5E Unshielded BL

SKU: 92J45B Category:
Cher V PB 1g RJ45 CAT5E Unshielded BL
Cher V PB 1g RJ45 CAT5E Unshielded BL - Image 2
Cher V PB 1g RJ45 CAT5E Unshielded BL - Image 3
Cher V PB 1g RJ45 CAT5E Unshielded BL - Image 4
SKU: 92J45B Category:

Type

1 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Polished Brass

Insert Finish

Black

Description

Cheriton Victorian Polished Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-033-001
Insert-Type

1 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

Black
Uf-ItmLabelTechInsert

J45
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Polished Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black
PlateFinish

Cheriton Victorian Box Polished Brass
EAN13-Barcode

5028690371724
Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

Item-Image

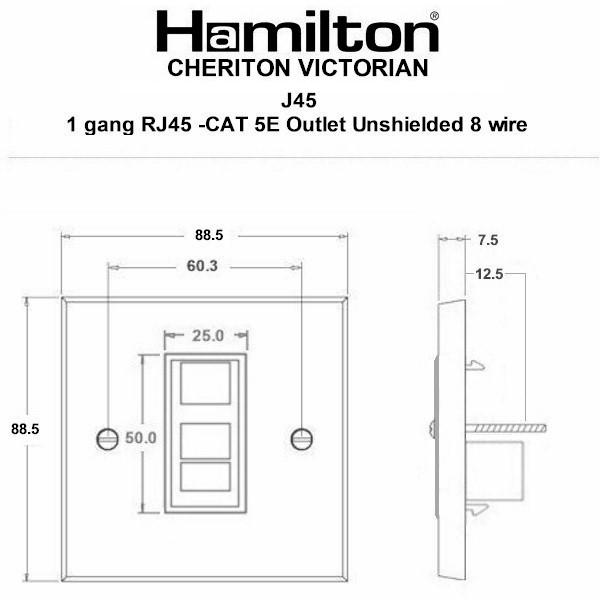

Dimension-Image

Luckins-TSI

385563958
Tech-Sheet-Page-Footer

92J45B – Cheriton Victorian Polished Brass 1 gang RJ45 CAT 5E Outlet – Unshielded Black
product-code

S CHER VPB
family-code

S CHER VIC
last-inv

01/11/2024
unit-weight

110.00000
weight-units

GR
Uf-LuckinsEDP

4533123573
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

33
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Weight

110 GR
IP-Rating

IP2XD
description

Cher V PB 1g RJ45 CAT5E Unshielded BL
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Polished Brass
Subheader2

Cheriton Victorian Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
