Cher V BK Isol TVFM Diplex 1in/2o BL

SKU: 98TVFMB Category:
Cher V BK Isol TVFM Diplex 1in/2o BL
Cher V BK Isol TVFM Diplex 1in/2o BL - Image 2
Cher V BK Isol TVFM Diplex 1in/2o BL - Image 3
Cher V BK Isol TVFM Diplex 1in/2o BL - Image 4
SKU: 98TVFMB Category:

Type

Isolated TV/FM Diplexer 1in/2out

Plate Finish

Black Nickel

Insert Finish

Black

Description

Cheriton Victorian Black Nickel Isolated TV/FM Diplexer 1in/2out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-032-012
Insert-Type

Isolated TV/FM Diplexer 1in/2out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TVFM
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Black Nickel Isolated TV/FM Diplexer 1in/2out Black
PlateFinish

Cheriton Victorian Box Black Nickel
EAN13-Barcode

5017503981632

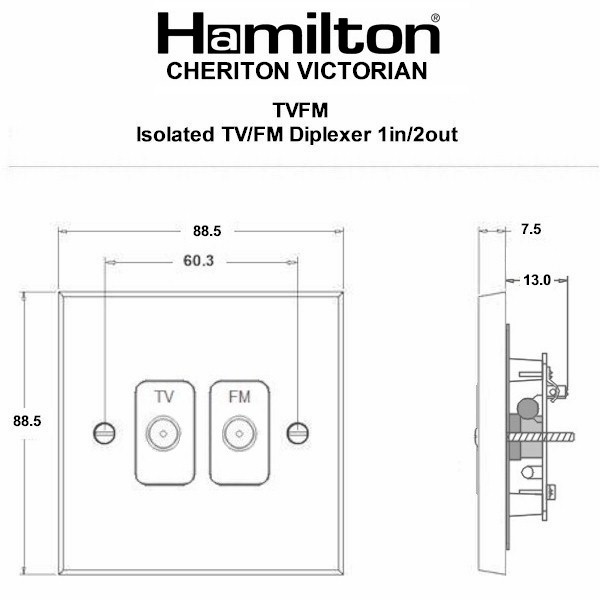

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

386908813
Tech-Sheet-Page-Footer

98TVFMB – Cheriton Victorian Black Nickel Isolated TV/FM Diplexer 1in/2out Black
product-code

S CHER VBK
family-code

S CHER VIC
last-inv

21/06/2019
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533133149
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

32
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV/FM Isolated
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

Cher V BK Isol TVFM Diplex 1in/2o BL
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Black Nickel
Subheader2

Cheriton Victorian Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
