Cher V BC 1g Non-Isolated TV 1in/1out WH

SKU: 95TVW Category:
Cher V BC 1g Non-Isolated TV 1in/1out WH
Cher V BC 1g Non-Isolated TV 1in/1out WH - Image 2
Cher V BC 1g Non-Isolated TV 1in/1out WH - Image 3
Cher V BC 1g Non-Isolated TV 1in/1out WH - Image 4
SKU: 95TVW Category:

Type

1 gang Non-Isolated TV 1in/1out

Plate Finish

Bright Chrome

Insert Finish

White

Description

Cheriton Victorian Bright Chrome 1 gang Non-Isolated Television 1in/1out White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-032-001
Insert-Type

1 gang Non-Isolated TV 1in/1out
Insert-Colour

White
Uf-ItmLabelTechInsert

TV
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Bright Chrome 1 gang Non-Isolated Television 1in/1out White
PlateFinish

Cheriton Victorian Box Bright Chrome
EAN13-Barcode

5017503400607

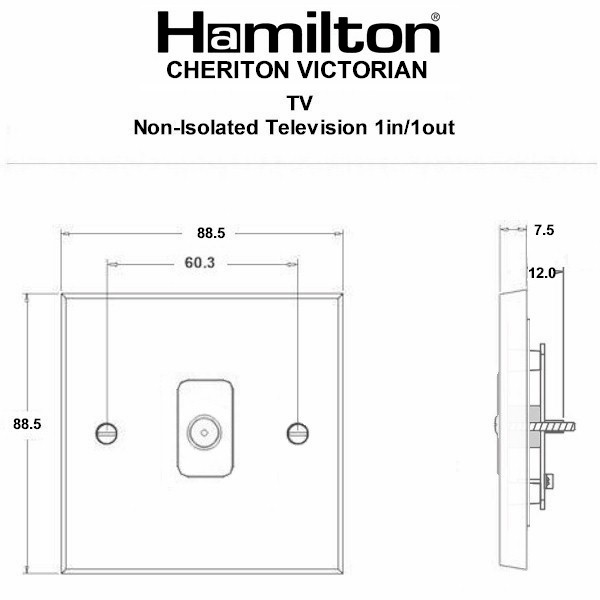

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387389075
Tech-Sheet-Page-Footer

95TVW – Cheriton Victorian Bright Chrome 1 gang Non-Isolated Television 1in/1out White
product-code

S CHER VBC
family-code

S CHER VIC
last-inv

24/02/26
unit-weight

162.90000
weight-units

GR
Uf-LuckinsEDP

4533147397
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

032
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Non-Isolated
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

24/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Weight

163 GR
IP-Rating

IP2XD
description

Cher V BC 1g Non-Isolated TV 1in/1out WH
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Bright Chrome
Subheader2

Cheriton Victorian Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
