Cher V AB 4 Euro Apert 100X50+Grid

SKU: 93EURO4 Category:
Cher V AB 4 Euro Apert 100X50+Grid
Cher V AB 4 Euro Apert 100X50+Grid - Image 2
Cher V AB 4 Euro Apert 100X50+Grid - Image 3
SKU: 93EURO4 Category:

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Antique Brass

Insert Finish

N/A

Description

Cheriton Victorian EuroFix Antique Brass Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-046-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Cheriton Victorian EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian EuroFix Antique Brass Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Cheriton Victorian EuroFix Antique Brass
EAN13-Barcode

5028690389194

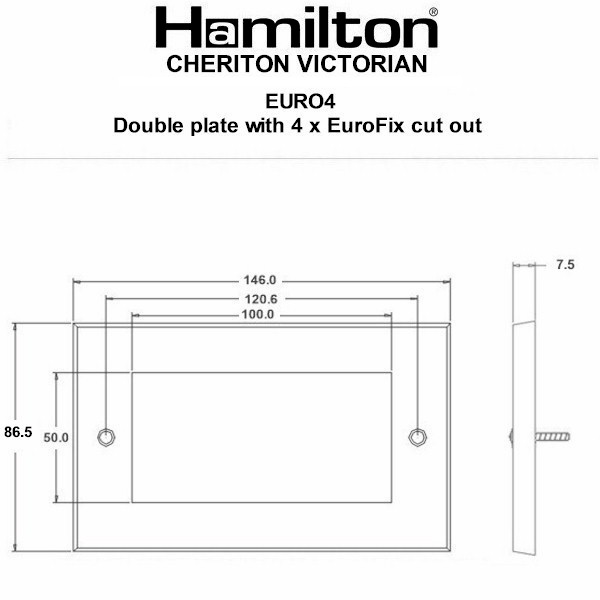

Dimensions(Nominal)

Double: Height = 86.5mm Width = 146.0mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

387387242
Tech-Sheet-Page-Footer

93EURO4 – Cheriton Victorian EuroFix Antique Brass Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EFix 93
family-code

S CHER VIC
last-inv

27/10/2025
unit-weight

164.00000
weight-units

GR
Uf-LuckinsEDP

4533145564
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

46
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

As Per Inserts
Weight

164 GR
Voltage

Insert Specific
IP-Rating

IPXXB
description

Cher V AB 4 Euro Apert 100X50+Grid
Height

86.5mm
Width

146.0mm
Depth

7.5mm
Plate-Finish

Antique Brass
Subheader2

Cheriton Victorian Eurofix
