Cher V SB 1g 45A Double Pole Red Rkr/BL

SKU: 9445B Category:
Cher V SB 1g 45A Double Pole Red Rkr/BL
Cher V SB 1g 45A Double Pole Red Rkr/BL - Image 2
Cher V SB 1g 45A Double Pole Red Rkr/BL - Image 3
Cher V SB 1g 45A Double Pole Red Rkr/BL - Image 4
SKU: 9445B Category:

Type

1 gang 45A Double Pole Red Rocker

Plate Finish

Satin Brass

Insert Finish

Red/Black

Description

Cheriton Victorian Satin Brass 1 gang 45A Double Pole Rocker Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-027-011
Insert-Type

1 gang 45A Double Pole Red Rocker
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Satin Brass 1 gang 45A Double Pole Rocker Red/Black
PlateFinish

Cheriton Victorian Box Satin Brass
EAN13-Barcode

5017503395781

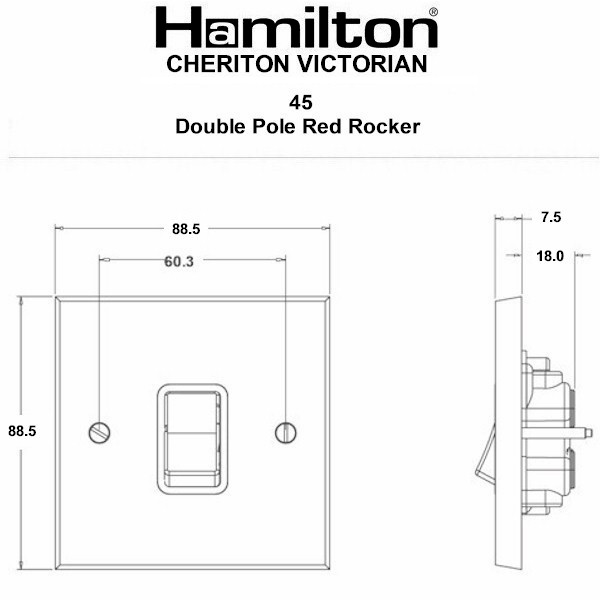

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

386908952
Tech-Sheet-Page-Footer

9445B – Cheriton Victorian Satin Brass 1 gang 45A Double Pole Rocker Red/Black
product-code

S CHER VSB
family-code

S CHER VIC
last-inv

08/02/2023
unit-weight

207.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533133288
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

27
InsertSortOrder

011
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

12/05/2025
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Brass
Subheader2

Cheriton Victorian Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

207 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Cher V SB 1g 45A Double Pole Red Rkr/BL
Height

88.5mm
Width

88.5mm
Depth

7.5mm
