Cher V BC 45A DP+N VERTICAL Red Rkr/BL

SKU: 9545VB Category:
Cher V BC 45A DP+N VERTICAL Red Rkr/BL
Cher V BC 45A DP+N VERTICAL Red Rkr/BL - Image 2
Cher V BC 45A DP+N VERTICAL Red Rkr/BL - Image 3
Cher V BC 45A DP+N VERTICAL Red Rkr/BL - Image 4
SKU: 9545VB Category:

Type

1 gang 45A Double Pole Red Rocker + Neon (Vertically Mounted)

Plate Finish

Bright Chrome

Insert Finish

Red/Black

Description

Cheriton Victorian Bright Chrome 1 gang 45A Double Pole Rocker and Neon (Vertically Mounted) Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-027-014
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon (Vertically Mounted)
Insert-Colour

Red/Black
Uf-ItmLabelTechInsert

45V
Uf-HAM-Plate-Range

Cheriton Victorian Box Vertical
Uf-HAMPlate-Generic-Size

Double
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Bright Chrome 1 gang 45A Double Pole Rocker and Neon (Vertically Mounted) Red/Black
PlateFinish

Cheriton Victorian Box Vertical Bright Chrome
EAN13-Barcode

5017503405992

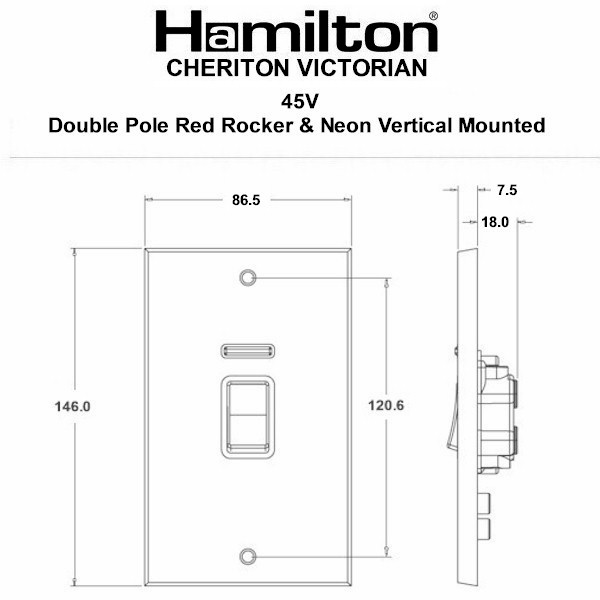

Dimensions(Nominal)

Double: Height = 146.0mm Width = 86.5mm Depth = 7.5mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1 x 16mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Additional-Notes

Must be mounted vertically
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387387970
Tech-Sheet-Page-Footer

9545VB – Cheriton Victorian Bright Chrome 1 gang 45A Double Pole Rocker and Neon (Vertically Mounted) Red/Black
product-code

S CHER VBC
family-code

S CHER VIC
last-inv

24/02/26
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533146291
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

027
InsertSortOrder

014
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Bright Chrome
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole + Neon (Vertically Mounted)
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

24/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Bright Chrome
Subheader2

Cheriton Victorian Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

Cher V BC 45A DP+N VERTICAL Red Rkr/BL
Height

146.0mm
Width

86.5mm
Depth

7.5mm
