Cher V PB 3g LEDITB100 2 way Dimmer PB

SKU: 923XLEDITB100 Category:
Cher V PB 3g LEDITB100 2 way Dimmer PB
Cher V PB 3g LEDITB100 2 way Dimmer PB - Image 2
Cher V PB 3g LEDITB100 2 way Dimmer PB - Image 3
SKU: 923XLEDITB100 Category:

Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Polished Brass

Insert Finish

Polished Brass

Description

Cheriton Victorian Polished Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-012-003
Insert-Type

3 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Polished Brass
Uf-ItmLabelTechInsert

3XLEDITB
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Polished Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
PlateFinish

Cheriton Victorian Box Polished Brass
EAN13-Barcode

5017504081775

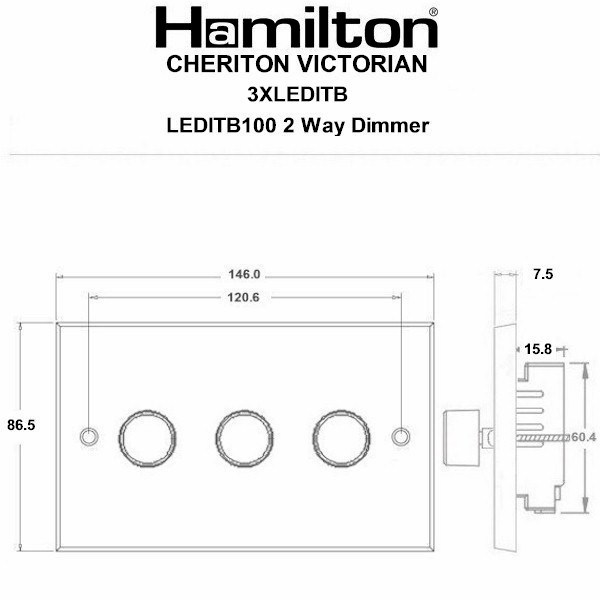

Dimensions(Nominal)

Double: Height = 86.5mm Width = 146.0mm Depth = 7.5mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403374731
Tech-Sheet-Page-Footer

923XLEDITB100 – Cheriton Victorian Polished Brass 3 gang 100W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
product-code

S CHER VPB
family-code

S CHER VIC
last-inv

17/10/25
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533382372
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

012
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Polished Brass
TrimColour

n/a
Last-Updated-At-Hamilton

07/02/26
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Cher V PB 3g LEDITB100 2 way Dimmer PB
Height

86.5mm
Width

146.0mm
Depth

7.5mm
Plate-Finish

Polished Brass
Subheader2

Cheriton Victorian Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1

Download datasheet
