Cher V BK 2g LEDITB100 2 way Dimmer BK

SKU: 982XLEDITB100 Category:
Cher V BK 2g LEDITB100 2 way Dimmer BK
Cher V BK 2g LEDITB100 2 way Dimmer BK - Image 2
Cher V BK 2g LEDITB100 2 way Dimmer BK - Image 3
SKU: 982XLEDITB100 Category:

Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Black Nickel

Insert Finish

Black Nickel

Description

Cheriton Victorian Black Nickel 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black Nickel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-012-002
Insert-Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Black Nickel
Uf-ItmLabelTechInsert

2XLEDITB
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Black Nickel 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black Nickel
PlateFinish

Cheriton Victorian Box Black Nickel
EAN13-Barcode

5017504081973

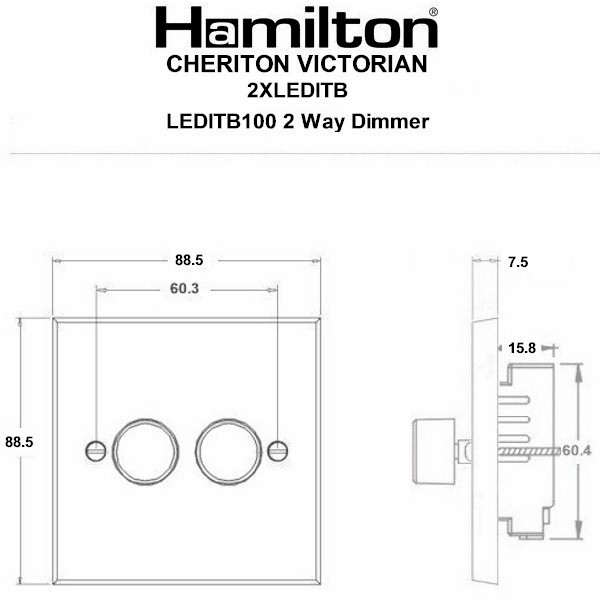

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403374922
Tech-Sheet-Page-Footer

982XLEDITB100 – Cheriton Victorian Black Nickel 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Black Nickel
product-code

S CHER VBK
family-code

S CHER VIC
last-inv

16/11/2023
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533382563
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

12
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Black Nickel
TrimColour

n/a
Last-Updated-At-Hamilton

02/07/2026
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

Cher V BK 2g LEDITB100 2 way Dimmer BK
Height

88.5mm
Width

88.5mm
Depth

7.5mm
Plate-Finish

Black Nickel
Subheader2

Cheriton Victorian Dimmers
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
