Cher V SB Double Blank Plate

SKU: 94BPD Category:
Cher V SB Double Blank Plate
Cher V SB Double Blank Plate - Image 2
Cher V SB Double Blank Plate - Image 3
SKU: 94BPD Category:

Type

Double Blank Plate

Plate Finish

Satin Brass

Insert Finish

N/A

Description

Cheriton Victorian Satin Brass Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Satin Brass Double Blank Plate
PlateFinish

Cheriton Victorian Box Satin Brass
EAN13-Barcode

5017503399895

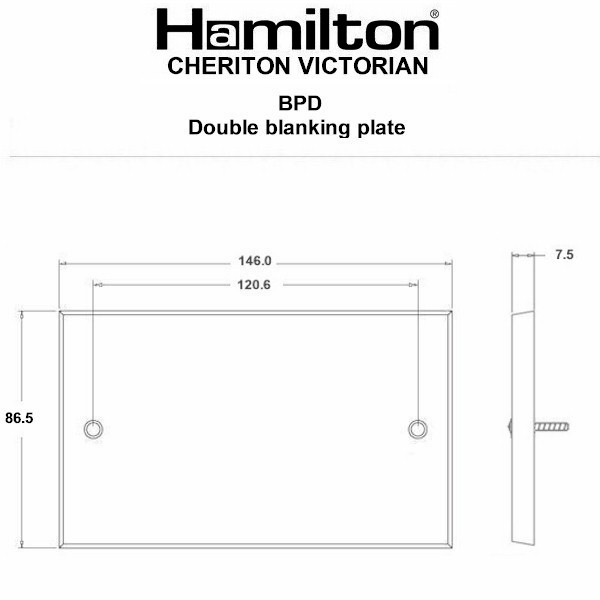

Dimensions(Nominal)

Double: Height = 86.5mm Width = 146.0mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

386906721
Tech-Sheet-Page-Footer

94BPD – Cheriton Victorian Satin Brass Double Blank Plate
product-code

S CHER VSB
family-code

S CHER VIC
last-inv

12/07/24
unit-weight

208.60000
weight-units

GR
Uf-LuckinsEDP

4533131057
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

023
HAM-SortOrder

036
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

05/12/25
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Satin Brass
Subheader2

Cheriton Victorian Range
Weight

209 GR
IP-Rating

IP2XB
description

Cher V SB Double Blank Plate
Height

86.5mm
Width

146.0mm
Depth

7.5mm
