Cher V PB Single Blank Plate

SKU: 92BPS Category:
Cher V PB Single Blank Plate
Cher V PB Single Blank Plate - Image 2
Cher V PB Single Blank Plate - Image 3
SKU: 92BPS Category:

Type

Single Blank Plate

Plate Finish

Polished Brass

Insert Finish

N/A

Description

Cheriton Victorian Polished Brass Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Victorian
Page-Sort-Order

023-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Cheriton Victorian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Victorian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Victorian Polished Brass Single Blank Plate
PlateFinish

Cheriton Victorian Box Polished Brass
EAN13-Barcode

5017503379880

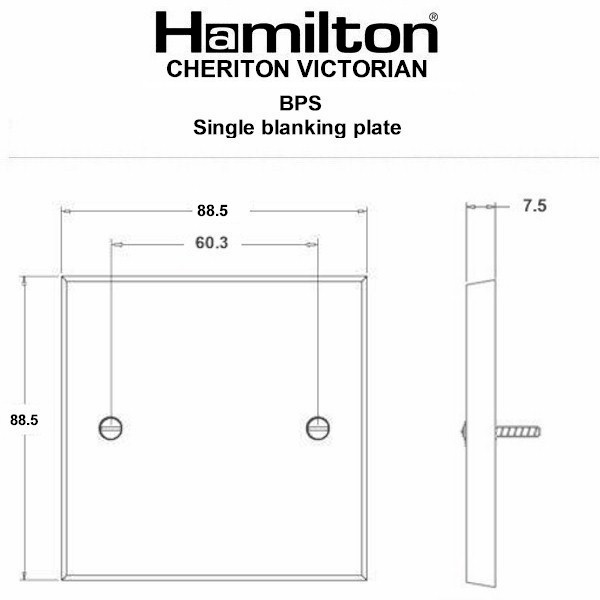

Dimensions(Nominal)

Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

386939798
Tech-Sheet-Page-Footer

92BPS – Cheriton Victorian Polished Brass Single Blank Plate
product-code

S CHER VPB
family-code

S CHER VIC
last-inv

30/01/2026
unit-weight

144.50000
weight-units

GR
Uf-LuckinsEDP

4533133440
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

23
HAM-SortOrder

36
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

30/01/2026
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Polished Brass
Subheader2

Cheriton Victorian Blank Plates
Weight

145 GR
IP-Rating

IP2XB
description

Cher V PB Single Blank Plate
Height

88.5mm
Width

88.5mm
Depth

7.5mm
