Cher G PB 2g N-Isol TV+Sat 2in/2out WH

Cher G PB 2g N-Isol TV+Sat 2in/2out WH
Cher G PB 2g N-Isol TV+Sat 2in/2out WH - Image 2
Cher G PB 2g N-Isol TV+Sat 2in/2out WH - Image 3
Cher G PB 2g N-Isol TV+Sat 2in/2out WH - Image 4

Type

2 gang Non-Isolated TV+Satellite 2in/2out

Plate Finish

Polished Brass

Insert Finish

White

Description

Cheriton Georgian Polished Brass 2 gang Non-Isolated TV+Satellite 2in/2out White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Georgian
Page-Sort-Order

022-032-003
Insert-Type

2 gang Non-Isolated TV+Satellite 2in/2out
Insert-Colour

White
Uf-ItmLabelTechInsert

TVSAT
Uf-HAM-Plate-Range

Cheriton Georgian Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Cheriton Georgian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Georgian Polished Brass 2 gang Non-Isolated TV+Satellite 2in/2out White
PlateFinish

Cheriton Georgian Box Polished Brass
EAN13-Barcode

5028690350613

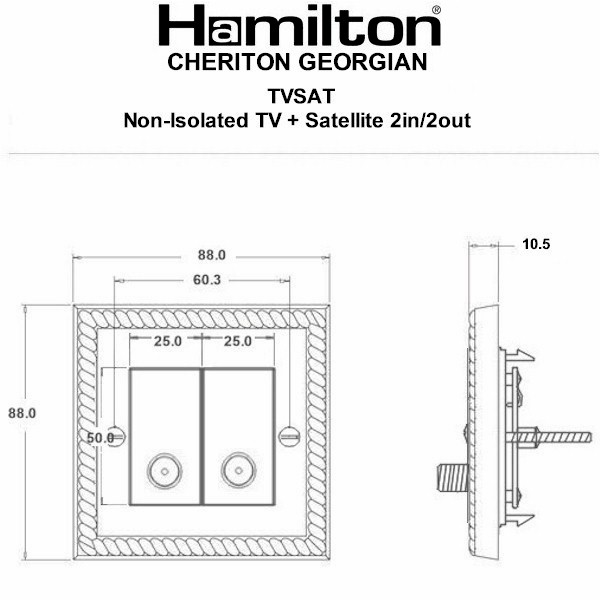

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 10.5mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

387386696
Tech-Sheet-Page-Footer

90TVSATW – Cheriton Georgian Polished Brass 2 gang Non-Isolated TV+Satellite 2in/2out White
product-code

S CHER GPB
family-code

S CHER GEO
last-inv

08/08/19
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533145030
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

022
HAM-SortOrder

032
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV+Satellite Non-Isolated
WEB-NumberofGangs

2
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

17/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Cher G PB 2g N-Isol TV+Sat 2in/2out WH
Height

88.0mm
Width

88.0mm
Depth

10.5mm
Plate-Finish

Polished Brass
Subheader2

Cheriton Georgain Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
