Type

2 gang 13A Double Pole Switched Socket

Plate Finish

Polished Brass

Insert Finish

Polished Brass/White

Description

Cheriton Georgian Polished Brass 2 gang 13A Double Pole Switched Socket Polished Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Cheriton Georgian
Page-Sort-Order

022-021-002
Insert-Type

2 gang 13A Double Pole Switched Socket
Insert-Colour

Polished Brass/White
Uf-ItmLabelTechInsert

SS2
Uf-HAM-Plate-Range

Cheriton Georgian Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Cheriton Georgian
Patents-And-Trade-Marks

Cheriton is a Registered Trade Mark No. 2344779
Item-Long-Description

Cheriton Georgian Polished Brass 2 gang 13A Double Pole Switched Socket Polished Brass/White
PlateFinish

Cheriton Georgian Box Polished Brass
EAN13-Barcode

5017503353026

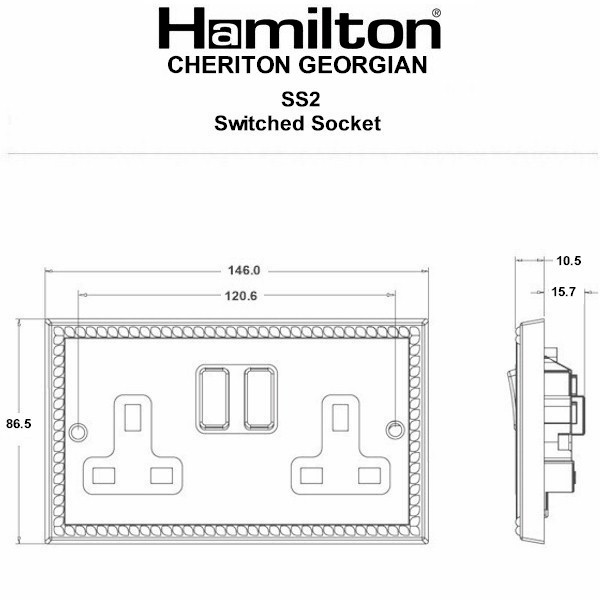

Dimensions(Nominal)

Double: Height = 86.5mm Width = 146.0mm Depth = 10.5mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Dual Earth: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385562535
Tech-Sheet-Page-Footer

90SS2PB-W – Cheriton Georgian Polished Brass 2 gang 13A Double Pole Switched Socket Polished Brass/White
product-code

S CHER GPB
family-code

S CHER GEO
last-inv

20/02/26
unit-weight

279.40000
weight-units

GR
Uf-LuckinsEDP

4533122150
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

50
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

022
HAM-SortOrder

021
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

Switched Socket
WEB-NumberofGangs

2
MainInsertColour

Polished Brass
TrimColour

White
Last-Updated-At-Hamilton

20/02/26
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass
Subheader2

Cheriton Georgain Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Weight

279 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Cher G PB 2g 13A DP Swt Skt PB/WH
Height

86.5mm
Width

146.0mm
Depth

10.5mm
