Description
Cheriton Georgian Antique Brass 2 gang 13A Double Pole Switched Socket Antique Brass/Black
SKU: 91SS2ABB
Category: Cheriton Georgian Power Sockets
Type
2 gang 13A Double Pole Switched SocketPlate Finish
Antique BrassInsert Finish
Antique Brass/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Cheriton Georgian |
| Page-Sort-Order | 022-021-002 |
| Insert-Type | 2 gang 13A Double Pole Switched Socket |
| Insert-Colour | Antique Brass/Black |
| Uf-ItmLabelTechInsert | SS2 |
| Uf-HAM-Plate-Range | Cheriton Georgian Box |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Cheriton Georgian |
| Patents-And-Trade-Marks | Cheriton is a Registered Trade Mark No. 2344779 |
| Item-Long-Description | Cheriton Georgian Antique Brass 2 gang 13A Double Pole Switched Socket Antique Brass/Black |
| PlateFinish | Cheriton Georgian Box Antique Brass |
| EAN13-Barcode | 5017503367023 |

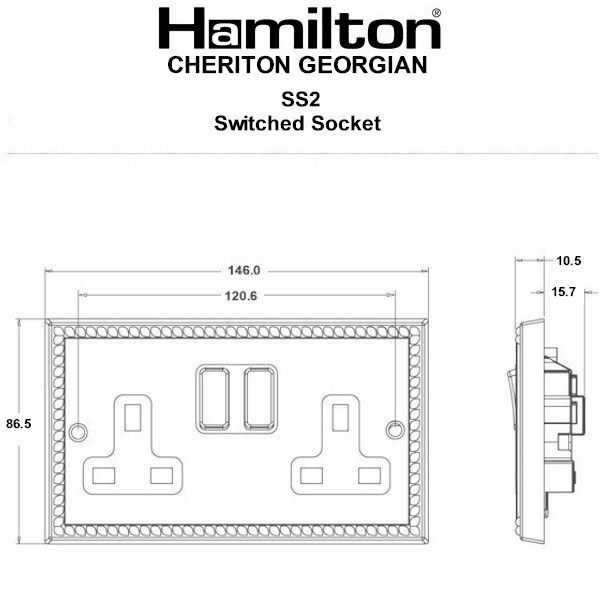

| Dimensions(Nominal) | Double: Height = 86.5mm Width = 146.0mm Depth = 10.5mm |
| Switched-Poles | Double |
| Current-Rating | 13 Amp |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 4×2.5mm² |
| Terminal-Capacity-2 | 3x4mm² |
| Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Terminal-Capacity-4 | 1x10mm² |
| Earth-Terminal-Capacity-1 | 4×2.5mm² |
| Earth-Terminal-Capacity-2 | 3x4mm² |
| Earth-Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Earth-Terminal-Capacity-4 | 1x10mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 1363-2 |
| Additional-Notes | Dual Earth: Yes |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSS2.jpg |
| Item-Image | 91SS2AB-B.jpg |
| Dimension-Image | TD-9GSS2.jpg |
| Luckins-TSI | 387386913 |
| Tech-Sheet-Page-Footer | 91SS2AB-B – Cheriton Georgian Antique Brass 2 gang 13A Double Pole Switched Socket Antique Brass/Black |
| product-code | S CHER GAB |
| family-code | S CHER GEO |
| last-inv | 25/02/26 |
| unit-weight | 273.50000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533145234 |
| Uf-HAMInnerBoxQty | 5 |
| Uf-OuterBoxQty | 50 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 022 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 002 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Switched Socket |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Antique Brass |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 25/02/26 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Antique Brass |
| Subheader2 | Cheriton Georgain Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/dcop/#p=1 |
| Weight | 274 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Cher G AB 2g 13A DP Swt Skt AB/BL |
| Height | 86.5mm |
| Width | 146.0mm |
| Depth | 10.5mm |
Download datasheet
