Description
Cheriton Georgian Polished Brass 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Black/Black
Cher G PB 13A DP Fuse SP+N+CO BL/BL
Type
1 gang 13A Double Pole Fused Spur + Neon + Cable OutletPlate Finish
Polished BrassInsert Finish
Black/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Cheriton Georgian |
| Page-Sort-Order | 022-026-003 |
| Insert-Type | 1 gang 13A Double Pole Fused Spur + Neon + Cable Outlet |
| Insert-Colour | Black/Black |
| Uf-ItmLabelTechInsert | SPNC |
| Uf-HAM-Plate-Range | Cheriton Georgian Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Cheriton Georgian |
| Patents-And-Trade-Marks | Cheriton is a Registered Trade Mark No. 2344779 |
| Item-Long-Description | Cheriton Georgian Polished Brass 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Black/Black |
| PlateFinish | Cheriton Georgian Box Polished Brass |
| EAN13-Barcode | 5017503351930 |

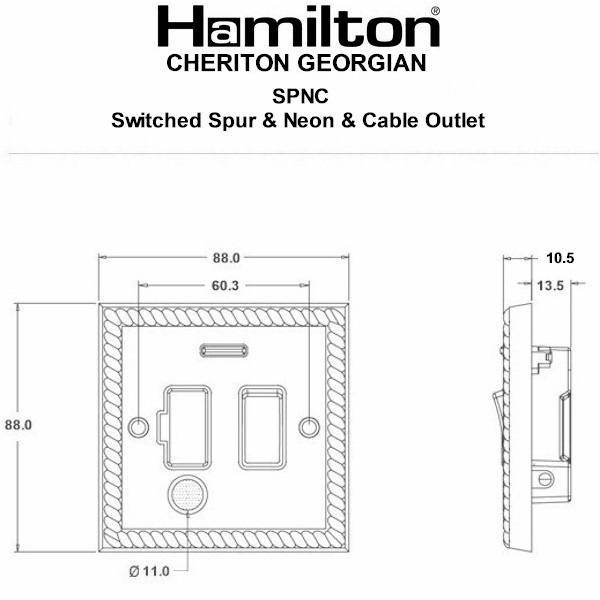

| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 10.5mm |
| Switched-Poles | Double |
| Current-Rating | 13 Amp |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 3×2.5mm² |
| Terminal-Capacity-2 | 2x4mm² Multi-Strand |
| Terminal-Capacity-3 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Maximum-Installation-Altitud | 2000m |
| Cable-Outlet-Minimum-Maximum | Min = 0.75mm² Max = 2.5mm² |
| Standard-Approval | BS 1363-4 |
| Additional-Notes | Cable Outlets Fitted with Clamps:Yes |
| Commodity-Code | 85363010 |
| Wiring-Image | WDSP.jpg |
| Item-Image | 90SPNCBL-B.jpg |
| Dimension-Image | TD-9GSPNC.jpg |
| Luckins-TSI | 385562373 |
| Tech-Sheet-Page-Footer | 90SPNCBL-B – Cheriton Georgian Polished Brass 1 gang 13A Double Pole Fused Spur and Neon and Cable Outlet Black/Black |
| product-code | S CHER GPB |
| family-code | S CHER GEO |
| last-inv | 26/06/2024 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533121999 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 22 |
| HAM-SortOrder | 26 |
| InsertSortOrder | 003 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Cable-Outlet-Min | 0.75mm² |
| Cable-Outlet-Max | 2.5mm² |
| Uf-HAMPlateFinish | Polished Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Double Pole Fused Spur + Neon + Cable Outlet |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 12/05/2025 |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Polished Brass |
| Subheader2 | Cheriton Georgian Connection Units |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/jfee/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Cher G PB 13A DP Fuse SP+N+CO BL/BL |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 10.5mm |
